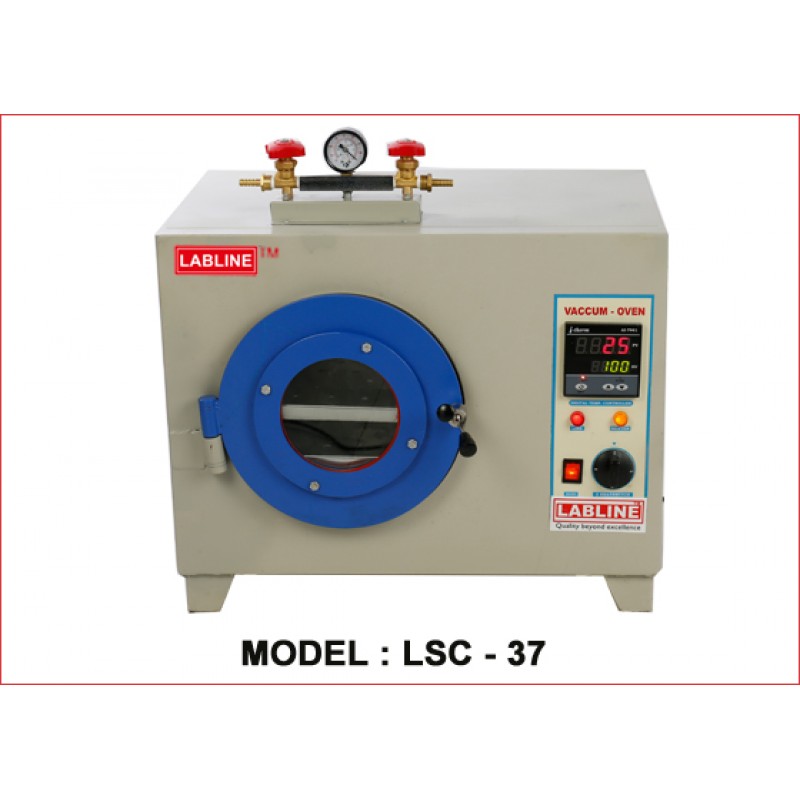

Vacuum Oven

Unique Features :

• Ergonomic Design
• Superior Functionality
• High-Temperature Accuracy
• Better Temperature Uniformity

Construction :

• Double-walled construction, Inner Chamber is made of thick gauge Stainless Steel 304 Q and Exterior chamber made of mild steel sheet pre greased, pretreated for rust proofing and powder coated.
• The gap between the chambers is filled with special grade glass wool for proper insula on to avoid heat loss and thereby saving energy.
• Uniform drying under Vacuum.
• Supplied with Stainless steel tray, vacuum gauge, vacuum cock, toughened glass window in centre of the door to see through the chamber.

Technical Data :

• Temp. Range : 50 0C to 2500C
• Temp. Accuracy : ± 20C
• Digital Temp. controller : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.1°C . Dual display one for process value (PV) & the another for Set Value of Tempreture (SV)
• Power Supply : 230 Volts A.C 50 Hz Single Phase

Heating Element :

• Heating element is made from best quality Nichrome wire wounded around the chamber & covered with blankets.
