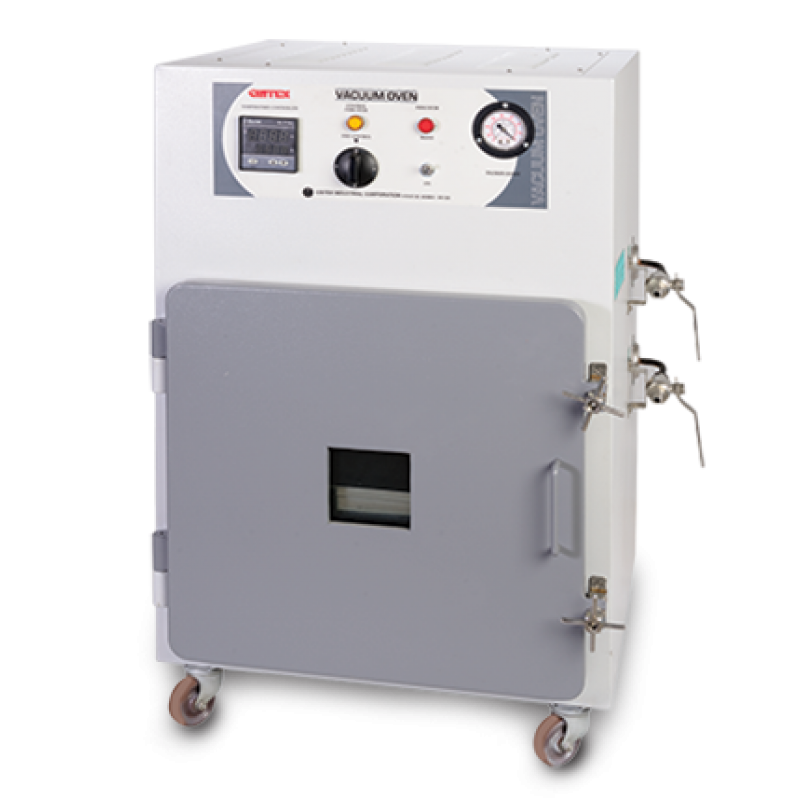

Vacuum Oven
Product Details:
Round – Rectangular

• Specially designed heating element that eliminate exposed heaters giving smooth Chamber surface.
• The heat tempered full length Inner glass having window allows observation of load.

• Radiant warm wall heat guarantees even heat distribution.
• Chamber 304 SS with Exterior GI Powder Coated finish in REGULAR MODEL.

• Interior 304 Matt/Buff finish & Exterior 304 SS Matt finish in GMP MODEL.
• Two 316/304 SS valve-one for evacuuming and other for perging/flushing.

• Vacuum levels are controlled between 1” and 30”Hg.
• Food grade silicon door gasket and highly alingned sturdy door fitting.

• Perforated SS buffed trays for round models.
• Smooth edges non perforated trays for Rectangular Models.
• Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT - 100 sensor.


Reference Model Rectangular

Optional

• PLC Based Touch screen Control System with printer OUTPUT facility.
• SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails

• PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
• TOUCH SCREEN HMI facility.

• AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
• TIMER facility.

• 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.
• PROGRAMMABLE PID TEMPERATURE CONTROLLER..
