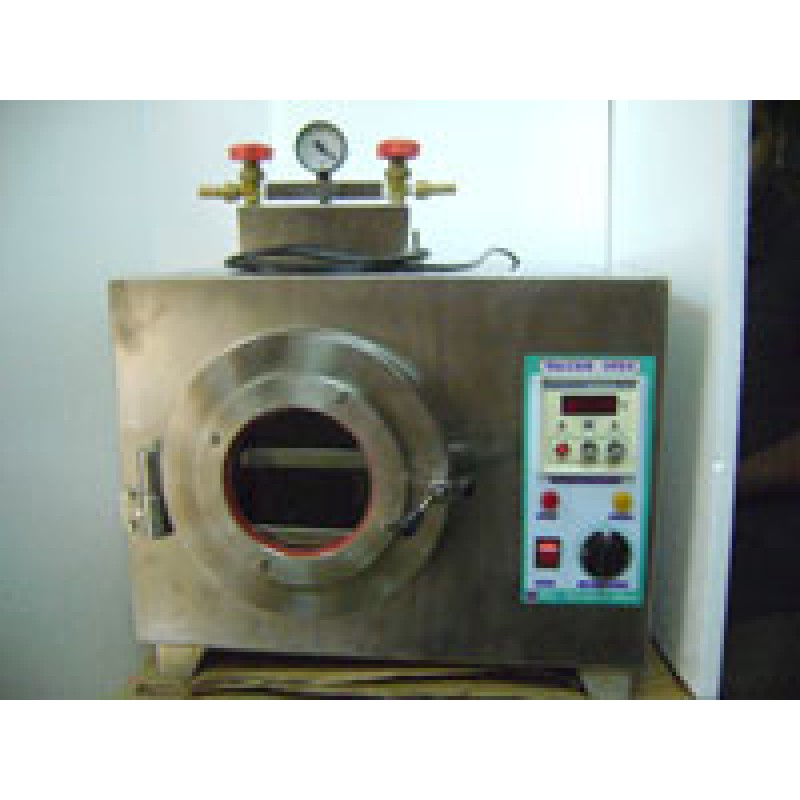

Round Vaccum Oven

Product Details :

Developed by using sophisticated techniques, our round vacuum oven is fabricated using qualitative stainless steel. Used in diverse industrial applications, our ovens can made tailored as per the requirements of our clients.

Specifications of vacuum oven

• Double walled.
• Inside chamber constructed with thick stainless steel 304 Quality.
• Out side chamber manufactured with mild steel sheet pre greased, pretreated and powder coated for rust proofing.
• Proper glass wool insulation between the chambers to prevent heat loss.
• Operating temperature ranges from 50°C to 200"C with -2°C accuracy. Uniform drying through vacuum.
• Precise Vacuum control upto 30Hg, which are displayed on Analog gauge.
• For quick and uniform heating, the vacuum chamber is fiited with set of high quality heaters.
• Digital temp indicator cum controller helps in controlling the temperature.
• The Door has a thick tempered toughened glass window and is properly sealed with silicon rubber gasket for observation without disturbing thermal condition.
• Control panel on the front panel, with temperature controller, switches and indicating lamps.
