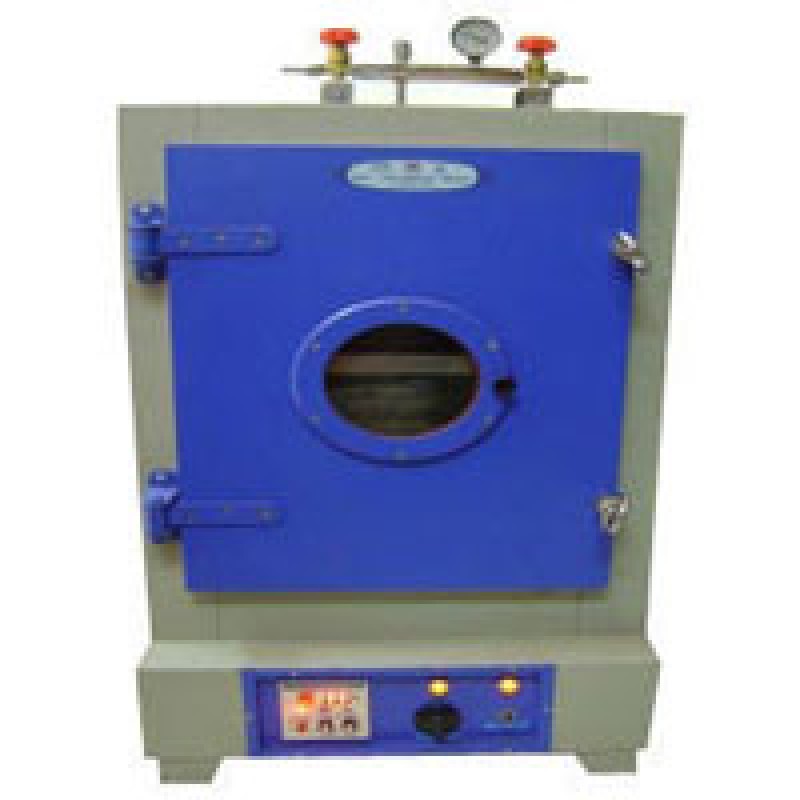

Rectangular Vacuum Oven

Product Details :

Rectangular Vacuum Ovens are made from heavy gauge material & it Is rectangular in shape with full toughen glass window to view sample.

Technical Specifications

• Round vacuum oven are double walled
• Inside chamber is made of thick stainless steel S.S.304
• Outside chamber made of Mild steel Powder coated
• High grade glass wool insulation between two walls to avoid lost of heat
• Uniform drying under vacuum Temp. Range 50 ˚C to 200 ˚C with accuracy of ± 2 ˚C
• Precise vacuum guage upto 30 H2 analogue
• Temp controlled by digital temp controller cum indicator
• Vacuum chamber is wrapped with set of high quality heater for quick & uniform heating door and has a thick tempered toughen glass window perfectly sealed with silicon rubber gasket for observation without disturbing thermal condition
• Proper door alignment to ensure excellent vacuum performance & operate safety
• Positive screw to tighten the lid to obtain preface seal
• Fitted with vacuum valves & vacuum gauge
• Switches & indicating lamps are provided on front panel

Optional Accessories

• PID Controller with printer option
• Programmable controller with 8 steps

Size available in rectangular vacuum oven as below.
