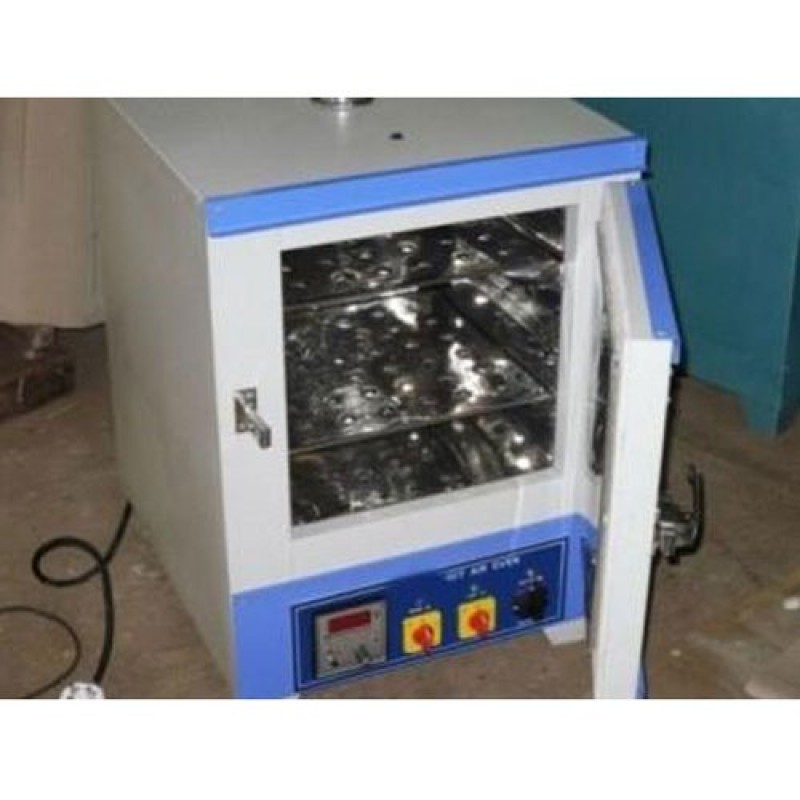

Pharmaceutical Hot Air Oven
Product Details :
Temperature Range | 5 to 250 Degree C |
Usage/Application | Laboratory |
No Of Trays | 2-3 |
Material | Stainless Steel |
Number Of Shelves | 3 |
Frequency Hertz | 50 Hz |
Voltage Volt | 220 V AC |
Thermostat Controller | Capillary Thermostat |
Applications :
- For variety of thermal processing applications like
- Component & stability testing
- Core hardening
- General labwork
- Drying
Features :
- Double walled construction, Inner chamber made of stainless steel.
- Outer chamber is made of mild steel attractively finished in powder coating for durable operation.
- Innerchamber is fabricated with ribsto adjust tray stoany convenient height.
- Oven supplied with removable perforated trays 2 or 3 depending on sizes.
- Tray made of Stainless Steel.
- It Insulated by 2.5” gap between the walls is filed with special grade glass wool for proper insulation and to avoid heat losses.
- It is double walled inner Stainless Steel and outer chamber mild steel with powder coated paint fitted with heavy stainless steel hinges with spring loaded lock.
- Heating elements are made of high-grade Ni chrome wire, which are put inside the porcelain beads and placed at the bottom for uniform temperature all over the space.
- Air ventilators are provided at top as well as at the bottom to ventilate gases and fumes if any.
- The equipment is provided with a panel which is just below the door having a capillary type themostat, thermostat control known knob,On/Off switch,two pilot lamps and provision for fixing the timer.
