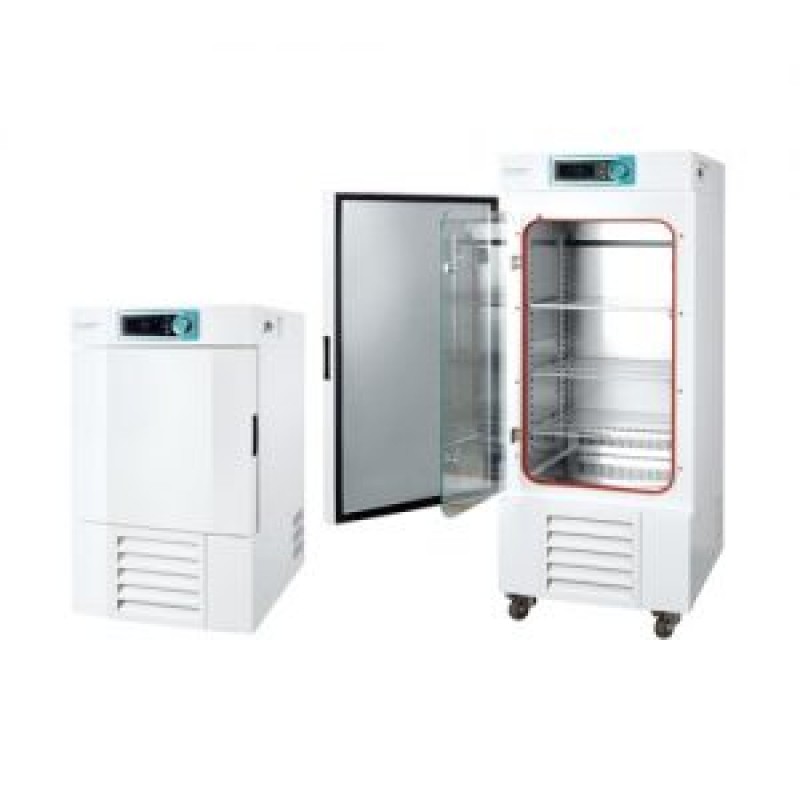

Low Temp. Incubators (Forced Convection)
Product Features :
Superb low-temperature incubation by noiseless compressor cooling system
Performance
- Temperature range from 0°C to 80°C
- Silent cooling system reduces water evaporation within the chamber
- Microprocessor PID control
- Three point temperature calibration / Automatic tuning
- Forced air convection using an optimal cross flow fan for chamber temperature uniformity
Convenience
- Large chamber volume: maximum 242L
- Bright VFD display (0.1℃ resolution) with heating level indication and quick adjustable dial knob
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings
- Built-in electrical outlet with a safety cover inside the chamber
- Convenient sample monitoring without affecting chamber temperature via inner tempered-glass door
- Rounded corners for easy cleaning and optimal airflow
- Quick-release front grill for easy cleaning of the condenser
- Built-in RS-232 port and USB port for external control and data collection
Safety
- Automatic run after power interruption
- Over-temperature protection
- Triple independent temperature monitor system
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Keypad lock function prevents accidental changes during operation
- Audible and visible open door alarms
Product Description :
Model | IL3-15 | ||
Chamber volume (L / cu ft) | 150 / 5.3 | 242 / 8.5 | |
Refrigerator (Hp) | 1 / 6 HBP | ||
Temperature | Range (℃ / ℉) | 0 to 80 / 32 to 176 | |
Fluctuation 1) at 37℃ (±℃ / ℉) | 0.1 / 0.18 | ||
Variation 1) at 37℃ (±℃ / ℉) | 0.8 / 1.44 | 1.0 / 0.18 | |
Dimension (W×D×H) | Interior(mm / inch) | 600×500×500/24×20×20 | 500×520×930/20×20.5×36.6 |
Exterior (mm / inch) | 720x760x1070/28.3×29.9×42.1 | 620x770x1680/24.4×30.3×66.1 | |
No. of wire shelf (standard / max.) | 2 / 11 | 3 / 25 | |
Net weight (Kg / lbs) | 100 / 220 | 135 / 297 | |
Electrical requirements (230V 50 Hz) | 50Hz, 4.5A | 50Hz, 6.4A | |
Cat. No. | AAH220412K | AAH220512K |
