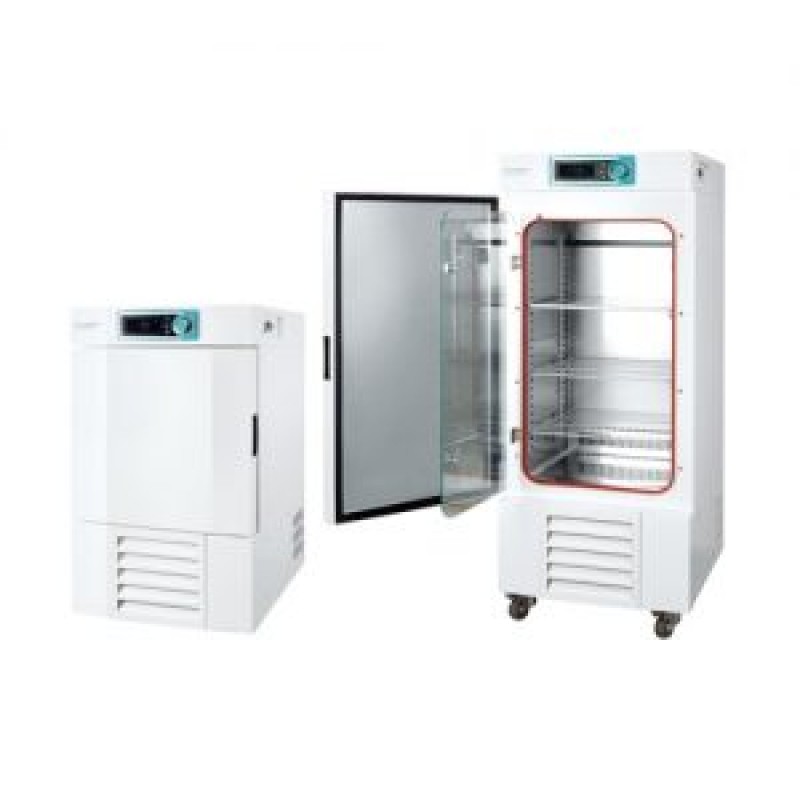

Low Temp. Incubators (Air-jacketed)
Product Features:
Specially designed for optimal temperature control as well as minimal sample contamination caused by external air intrusion
Performance
- Temperature range from ambient 4°C to 70°C
- Microprocessor PID control
- Three point temperature calibration / Automatic tuning
- Natural convection within the chamber induced by the heater and the fan located inside the air jacket
Convenience
- Large chamber volume: maximum 254L
- Bright VFD display (0.1℃ resolution) with heating level indication and quick adjustable dial knob
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings
- Built-in electrical outlet with a safety cover inside the chamber
- Convenient sample monitoring without affecting chamber temperature via inner tempered-glass door
- Rounded corners for easy cleaning and optimal airflow
- Quick-release front grill for easy cleaning of the condenser
- Built-in RS-232 port and USB port for external control and data collection
Safety
- Automatic run after power interruption
- over-current protection
- Keypad lock function prevents accidental changes during operation
- Triple independent temperature monitor system
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Audible and visible open door alarms
Product Description :
Model | IL3-15A | IL3-25A | |
Chamber volume (L / cu ft) | 156 / 5.5 | 254/8.97 | |
Refrigerator (Hp) | 1 / 6 HBP | ||
Temperature | Range (℃ / ℉) | 4 to 70 / 39.2 to 158 | |
Fluctuation 1) at 37℃ (±℃ / ℉) | 0.2 / 0.36 | ||
Variation 1) at 37℃ (±℃ / ℉) | 0.7 / 1.26 | 1.0 / 0.18 | |
Dimension (W×D×H) | Interior (mm / inch) | 600×520×500/24×20.5×20 | 500×540×940/20×21.3×37 |
Exterior (mm / inch) | 770x790x1115/30.3×31.1×43.9 | 670x805x1668/26.4×31.7×65.7 | |
No. of wire shelf (standard / max.) | 2 / 11 | 3 / 25 | |
Net weight (Kg / lbs) | 108 / 238.1 | 145 / 319.7 | |
Electrical requirements (230V 50 Hz) | 50Hz, 6.6A | 50Hz, 8A | |
Cat. No. | AAH220612K | AAH220712K |
