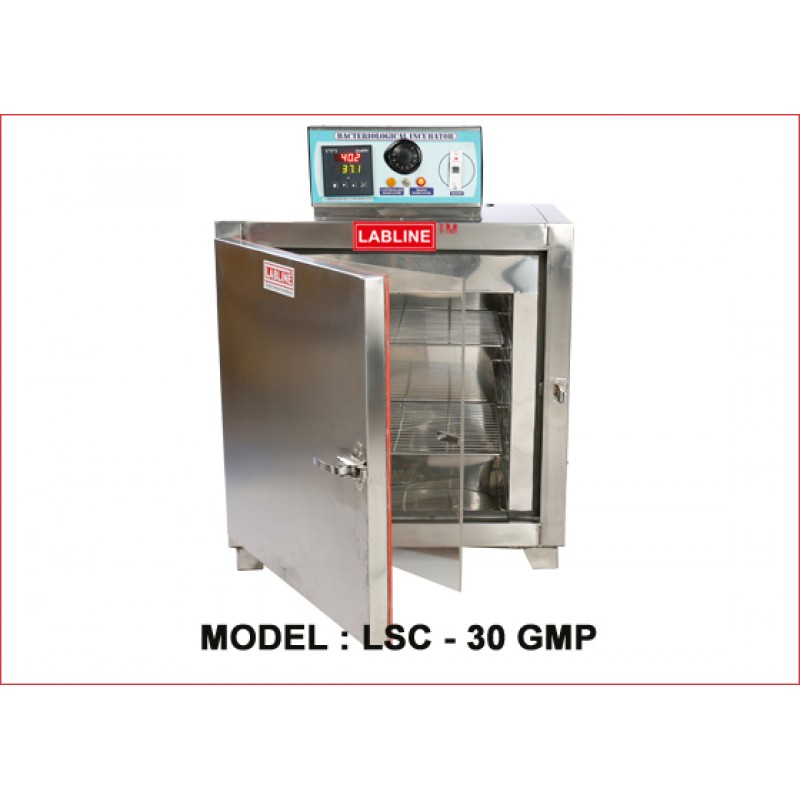

Lab Incubator GMP

Unique Features :

• Ergonomic Design
• Superior Functionality
• High Temperature Accuracy
• Better Temperature Uniformity

Construction :

• Triple walled construction, Completely made of Mild Stainless Steel inner made of 316 Q & outer made of 304 Q.
• Gap between the walls is ?lled with special grade glass wool for proper insulation to avoid heat loss and thereby saving energy.
• The door is fully insulated with S.S locks hinges.
• Air Ventilations are placed at left & right side for hot gases / fumes.
• Inner door made of acrylic to see through the chamber.
• Supplied with Stainless Steel wire mesh shelves.
• Forced Air Circulating System with Fan for Temperature Uniformity.
• Safety Thermostat.

Technical Data :

• Temp. Range : 5 0C above ambient to 600C
• Temp. Accuracy :  0.50C
• Digital Temp. controller : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.10C . Dual display one for process value (PV) & the other for Set Value of Tempreture (SV)
• Power Supply : 230 Volts A.C 50 Hz Single phase

Heating Element :

• Heating element of GMP model are placed at the right & left side of the inner chamber and is made of special grade chrome plated Nichrome wire (ISI Approved) for uniform temperature.

Optional Accessories :

• Digital Temperature controller Cum Indicator with Timer.
• Safety Thermostat.
