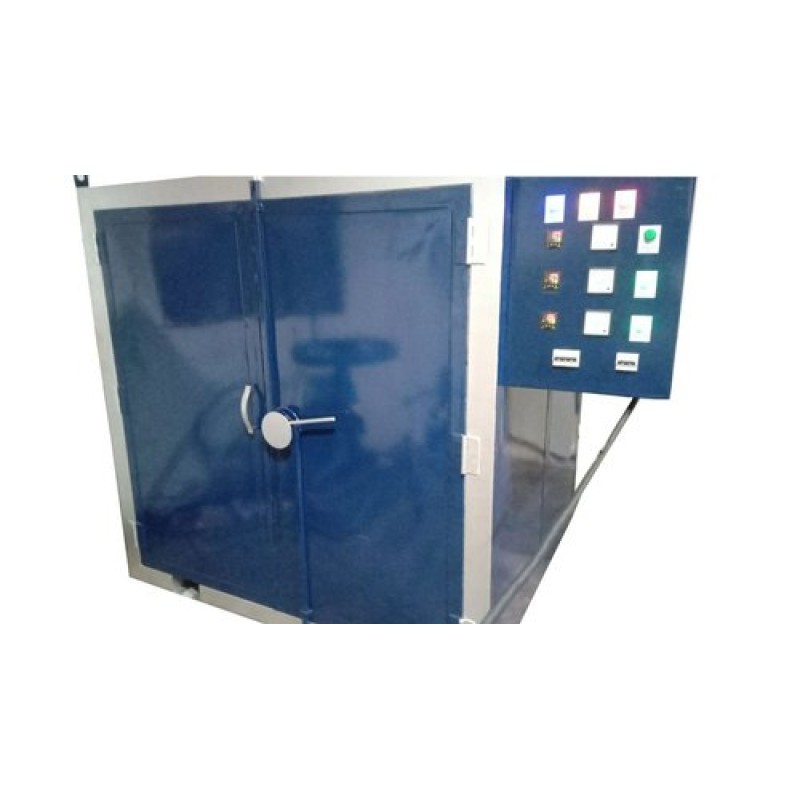

Industrial Cabinet Oven

Product Details :

• Inner Chamber: MS with 1.2mm Thickness.
• Outer Chamber: Made up of MS 1.2mm Thickness.
• Outer Chamber Color: Industrial Blue (Or Optional)
• Doors: 2 Numbers of Heavy Duty Doors opening outside.
• Door Lock: Heavy Duty Steering Type.
• Motor: 1Numbers1 HP (National Products make) 1440 rpm On top of the Oven with strong shaft and fan blades to circulate Air inside the chamber.
• Blower: MS Impeller with 18” length. ON/OFF Switch with 9 amp contactor with overload switch. 4 Numbers of amp meter.
• Controller: 2numbers of Digital PID controller (PVR make) with Timer temperature setting facility along with the timer.
• Censor: 4 Numbers J type censor (PPI make) for accuracy in temperature indication.
• Heater: 12 Nos (1KV Each) of SS 304Tubular heater.
• Maximum Temp: Up to 250° temperature.
• Working Temp: Up to 200° temperature.
• Temp. Accuracy: +/- 1 degree Celsius.
• Insulation: 100mm thick Rockwool (60/m2 density) insulation between two walls.
• Rating: 12KW.
• MCB: 1 Nos of 4 poles MCB (L&T make) 63 amp.  4 Numbers 32 amp MCB for Heater ON/OFF
• Air Vents: 4 Numbers Hot Air Outlet on Top of the Oven
• Supply: 3 Phase
• Trolley: Heavy Capacity Trolley along  easy movement.
• Power Supply: 440Volts, 50Hz.

Additional Information:

• Delivery Time: 15 Days
