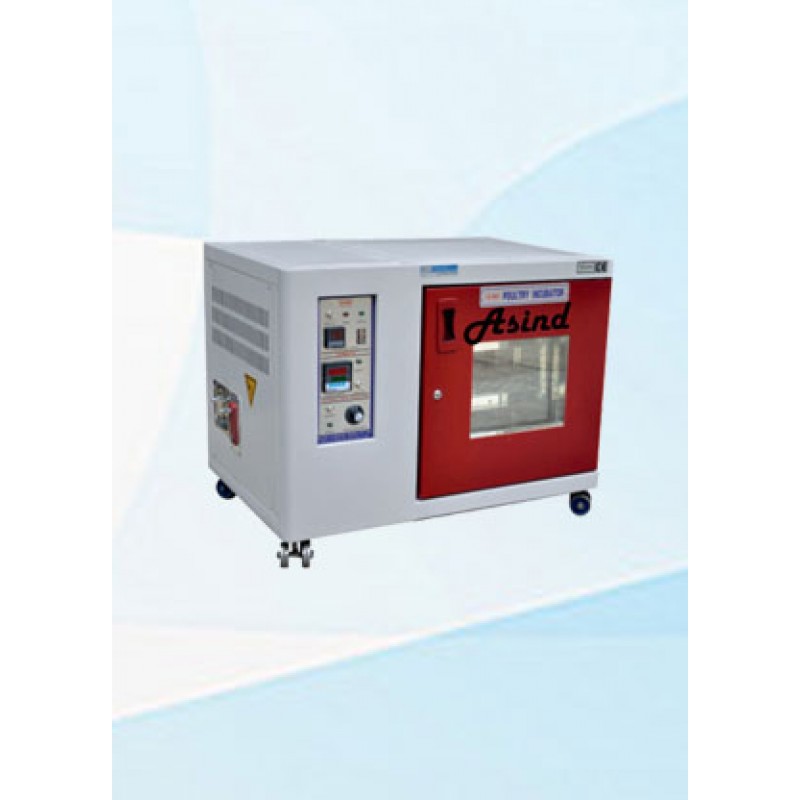

INCUBATOR DIGITAL
Product Details:
Incubation, Sterilization and storage for Pharmaceuticals, Agriculture, Medical and Food Industries, Bio-tech laboratories & Educational institute, requiring controlled temperature above Ambient.
Double wall inside made of thick anodized aluminum/ S. Steel 304 grade and outside Mild steel sheet furnished in durable power coating. The gap of 3” between two walls is fitted with pure white glass wool the door has double viewing to permit observation without disturbing thermal condition. Heating elements are placed in ribs at the bottom and sides. Unique design of ventilation keeps the instrument from being burnt. Fitted with silent air circulating fan for uniform temperature inside the chamber.
TECHNICAL SPECIFICATION INFORMATION:-

INTERIOR (MM)	300 X 300 X 300	350 X 350 X 350	450 X 450 X 450	450 X 450 X 605	605 X 605 X 605	605 X 605 X 900	605 X 450 X 900
Capacity (LTR)	28	45	95	125	224	336	252
Heater load	400W	400W	500W	700W	750W	1.0KW	1KW
Shelves	2	2	2	2	2	3	3
Temp. Range	Ambient to 70˚C
Temp. Stability	± 0.5˚C
MOC (Inner)	Made of Stainless Steel (SS-304)/Aluminum
MOC (Outer)	Made of mild steel sheet duly powder coated.
Safety Device	Temperature overshoots High & Low Temperature alarm.
Heater	Kanthal A1 super quality coil shaped heater
Typer	Force convection system.
Temp. Controller	Microprocessor based PID indicator cum controller
Regulator	Solid state electronic relay with protective heat sink
Insulation	Glass wool/Ceramic Blanket
Front door	Glasswool/Mineral wool insulated door with glass window
Power supply	220/230V A.C single supply; 50Hz
Duty cycle	Continuous
Optional	• Outer S. Steel 304 grade body on customer’s demand. • Inner Acrylic clear door. • Fully automatic PLC based control system.
