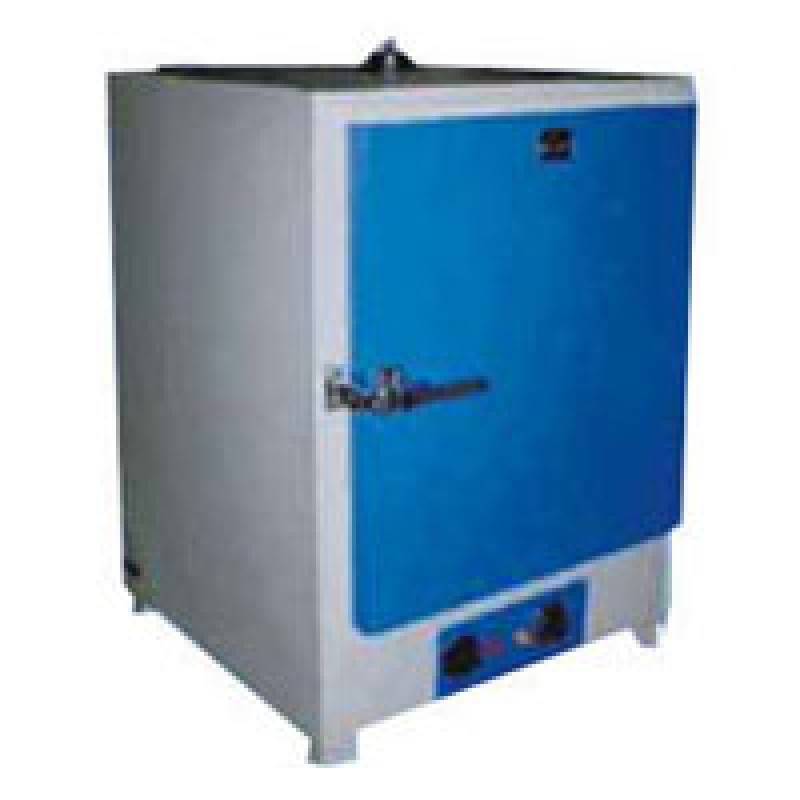

High Temperature Laboratory Oven
Specifications
- Hot Air Ovens are sturdy double walled units.
- Inner chamber made of S.S. and outer made of Mild steel with Powder coating.
- Gap between the walls fitted with glass wool insulation to avoid heat loses.
- Heating elements are made of high grade chrome plated microme wire.
- Temp. is controlled by thermostat.
- Temp. range 50 degree c to to 250 degree c and Accuracy : +-2 degree c.
- Air ventilations are placed on top of both sides to remove hot gases / fumes.
- In Lab type oven heaters placed in the bottom side of unit.
- All the control switches & pilot lamps are fitted on the front panel.
- Trays should be supplied with G.I wire mesh.
Optional Accessories :
- Air Circulation Fan for Uniform Temperature.
- Digital Temp. controller cum indicator in lieu of thermostat.
- S.S Trays.
- Out side chamber made of stainless steel.
| No. | Size in inches | H x W x D (in cms) |
| 1 | 12" X12" X12" | (30 x30 x30 Cm.) |
| 2 | 14" X14" X14" | (35 x35 x 35 Cm.) |
| 3 | 18" X18" X18" | (45 x 45 x45 Cm.) |
| 4 | 18" X18" X24" | (45 x 45 x60 Cm.) |
| 5 | 24" X24" X24" | (60 x 60 x60 Cm.) |
| 6 | 18" X24" X36" | (45 x 60 x90 Cm.) |
| 7 | 24" X24" X36" | (60 x 60 x90 Cm.) |
High Temperature Laboratory Oven
- Views: 71
- Vendor: Bio Techno Lab
- Vendor Type: Manufacturer, Supplier
- Product Code: BTI0000012
- Availability: In Stock
