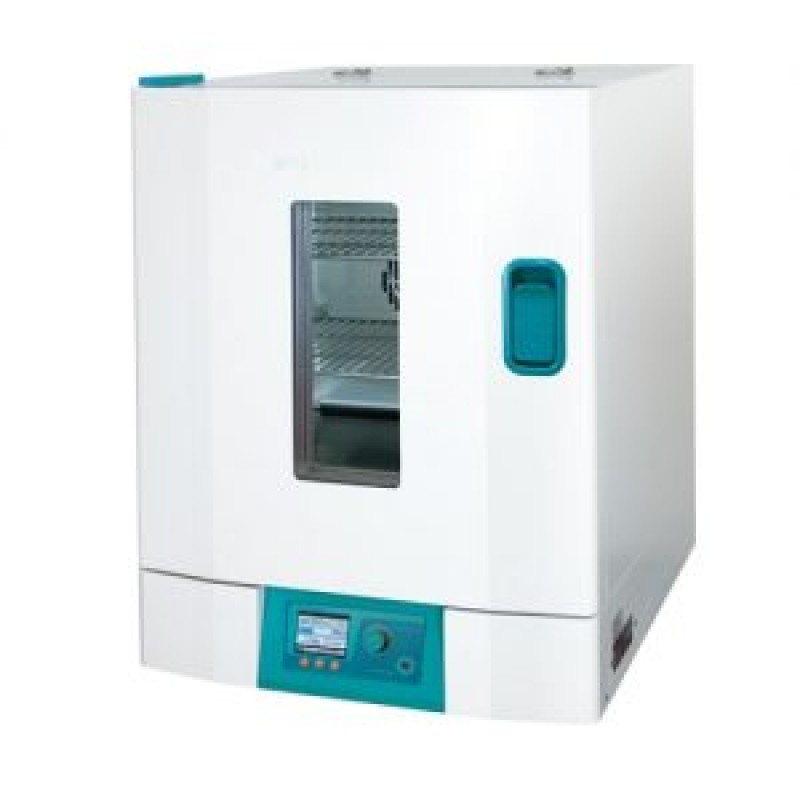

Forced Convection Ovens (Programmable)
Product Features:
- Unattended operation is absolutely available with the intelligent programmable controller
- Intelligent program control
- 10 programs available for temperature ramp up and dwell control
- 10 steps per a program and 99 hours 59 minutes per a step
- Stored programs are easily linkable
- Programs can be repeated up to 99 cycles
- Pre-heating and heating time are settable before program starts
Performance
- Temperature range from ambient +10°C to 250°C
- Microprocessor PID control
- Three point temperature calibration / Automatic tuning
- Forced air convection ensures optimal air circulation, temperature uniformity, and short heat-up time
- Adjustable dual slide vents for inner vapor circulation
Convenience
- Intuitive touch screen LCD controller with easy icons and logical menus
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Digital input and output control function for interlocking external devices
- Corrosion-resistant incoloy sheath heating element and stainless steel interior
- RS-232 interface for external control and data collection
Safety
- Keypad lock function prevents accidental changes during operation
- Automatic run after power interruption
- Over-temperature and over-current protection
- Audible and visible open door alarms
Product Description :
| Model | OF-02P | OF -12P | OF -22P | |
| Chamber volume (L / cu ft) | 60 / 2.1 | 102 / 3.6 | 151 / 5.3 | |
| Temperature | Range(℃ / ℉) | Amb. +10 to 250 / Amb. +18 to 482 | ||
| Fluctuation 1) at 100℃ (±℃ / ℉) | 0.5 / 0.9 | 0.6 / 1.08 | 0.8 / 1.44 | |
| Variation 1) at 100℃(±℃ / ℉) | 1 / 1.8 | 1.3 / 2.3 | 1.7 / 3.1 | |
| Dimension (W×D×H) | Interior (mm / inch) | 400×360×420/15.7×14.2×16.5 | 480×410×520/18.9×16.1×20.5 | 550×460×600/22×18×23.6 |
| Exterior(mm / inch) | 577×642×760/22.7×25.3×30 | 657×692×870/25.9×27.2×34.3 | 727×742×974/28.7×29.2×38.3 | |
| No. of wire shelf (standard / max.) | 2 / 7 | 2 / 11 | 2 / 13 | |
| Net weight (Kg / lbs) | 53 / 117 | 63 / 139 | 72.5 / 160 | |
| Electrical requirements(230V, 50 / 60Hz) | 4.4A | 6.1A | 7.4A | |
| Cat. No. | AAH12555K | AAH12565K | AAH12575K | |
