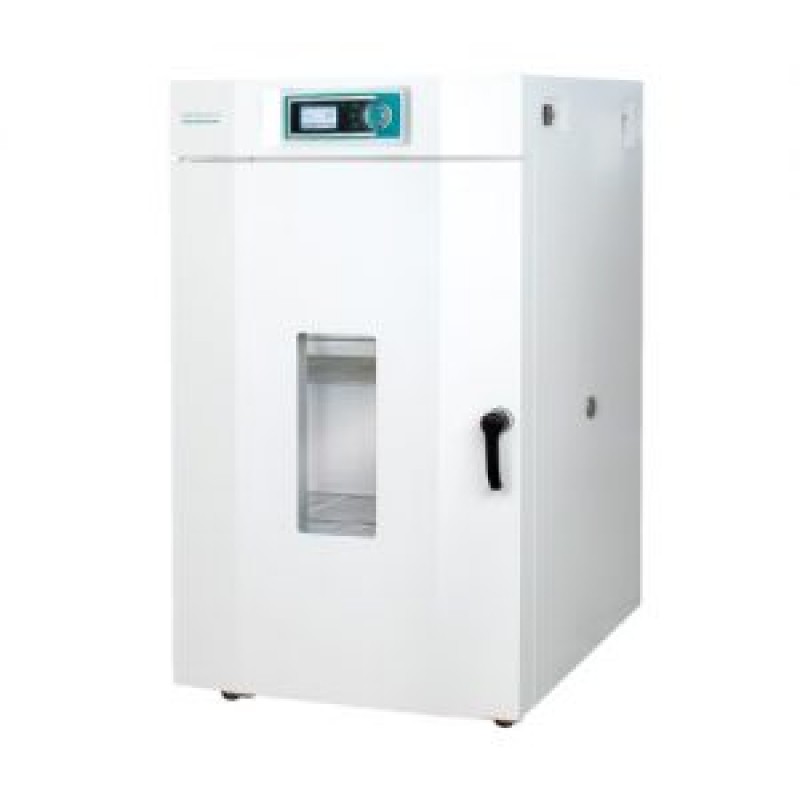

Forced Convection Ovens Large Volume (Max.760L) (Programmable)

Product Features:

• Specially designed for large volume and fast drying application (max. 760L and 300℃)
• Offering rapid heating performance as well as uniform temperature distribution, these heavy-duty ovens are ideal for obtaining quick test results

Intelligent program control

• 10 programs available for temperature ramp up and dwell control
• 10 steps per a program and 99 hours 59 minutes per a step
• Stored programs are easily linkable
• Programs can be repeated up to 99 cycles
• Pre-heating and heating time are settable before program starts

Performance

• Rapid heating performance up to maximum 300℃
• Microprocessor PID control
• Three point temperature calibration / Automatic tuning
• Forced air convection generated by two noiseless and powerful sirocco fans ensures optimal air circulation, temperature uniformity, and short heat-up time
• Adjustable dual slide vents for inner vapor circulation
• Energy efficiency is achieved thanks to optimization of the insulation system
• Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures

Convenience

• Optimum model selection is available according to two different types of control panel
• Intuitive touch screen LCD controller with easy icons and logical menus (for OF3-P/HP)
• Dual wait on/off timer modes (1 min. to 99 hr. 59 min.)
• Convenient presetting function for 3 most commonly used temperature settings
• Rounded inner chamber corners for easy cleaning and optimal airflow
• Threefold tempered-glass window provides clear inside view of the chamber (optional)
• USB port and RS-232 port for external control and data collection
• Casters for easy mobility during installation or relocation

Safety

• Automatic run after power interruption
• Over-current protection
• Triple independent temperature monitor system
• Temperature deviation alarm (High/Low)
• Electronic temperature limiter (High/Low)
• Mechanical over-temperature limiter (High)
• Alarms for open door status, temperature sensor error and temperature deviation
• Keypad lock function prevents accidental changes during operation

Product Description :
