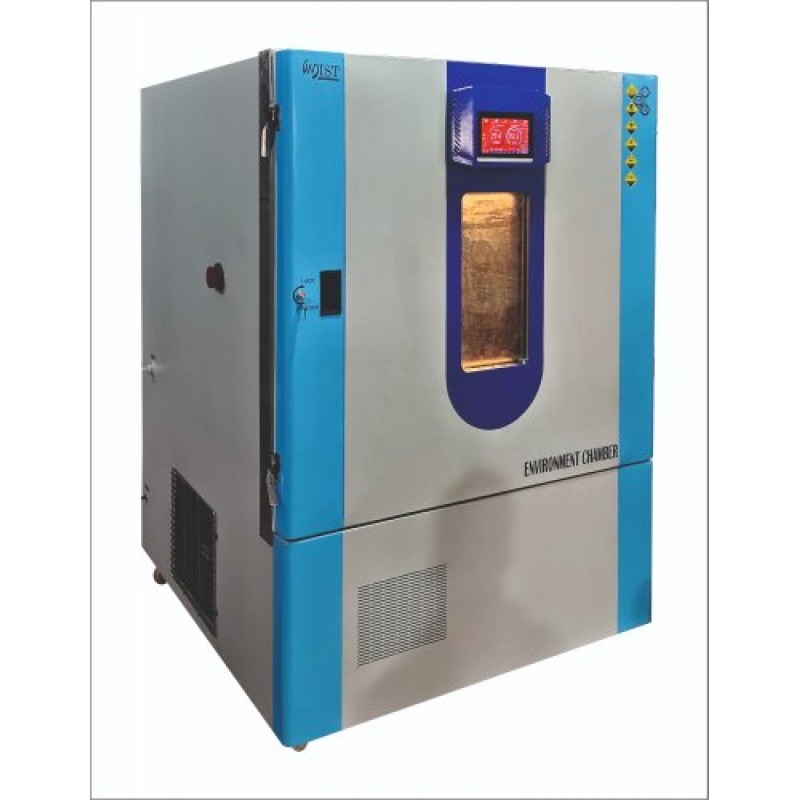

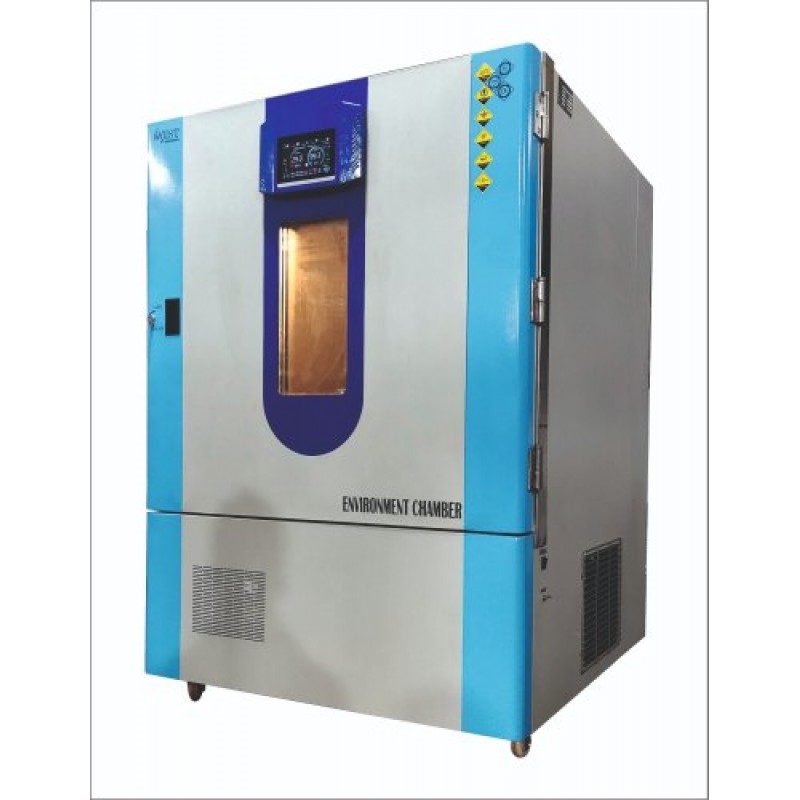

Climate Chamber Testing
Product Details :
Brand | Wist |
Temperature Range | 10 to 70 deg C |
Temperature Controller | Hermetically Sealed Refrigeration System-CFC Free Refrigeration |
Construction | Double-Walled with Poly Urethane (PUF) Insulation Provided Inner Chamber SS 304 Grade/Dull Finish |
Temperature Accuracy | +/- 0.5 deg C |
Humidity Accuracy | 2% |
Safety | Safety Thermostat (Additional Preset) to Protect Overheating |
Insullation | Insulation of 75 mm PUF Provided |
Illumination | Intensity of Photosynthesis by Day-Light Fluorescent Light can be Measured & will be Regulated by DI |
Safety Protection | The Water-Level Protection Circuit to Protect the Dry Run of Wet Heater with Audio Visual Alarm |
Cool system | Hermetically Sealed Refrigeration System-CFC Free Refrigeration |
- Double walled with 60mm PUF insulated modular panels with easy on-site assembly
- SS 304 Interior & Exterior either SS 304 or Pre Coated G. I.
- Stainless Steel Trays
- Observation window - 300 x 400 mm
- PVC strip curtain for reducing temperature leakages
- Heater line along the door to avoid condensation
- U-shaped SS tubular heaters
- Forced air circulation for uniform temperature
- CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
- System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
- Complete Operations driven through PLC with data logging capacity of upto 1000 readings & email facility
- High speed Ethernet based communication
- All operations through a single 7" Color Touch Screen
- High quality imported make T/Rh combo sensor with 4-20 mA output
- Safety devices: Low & High temperature cut-off settable thermostats & high humidity cut-off settable hygrostat
- Audio/Visual alarms for deviations
- Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual Power supply: 415 volts 50 Hz main supply. Also available with 60 Hz Cycle.
