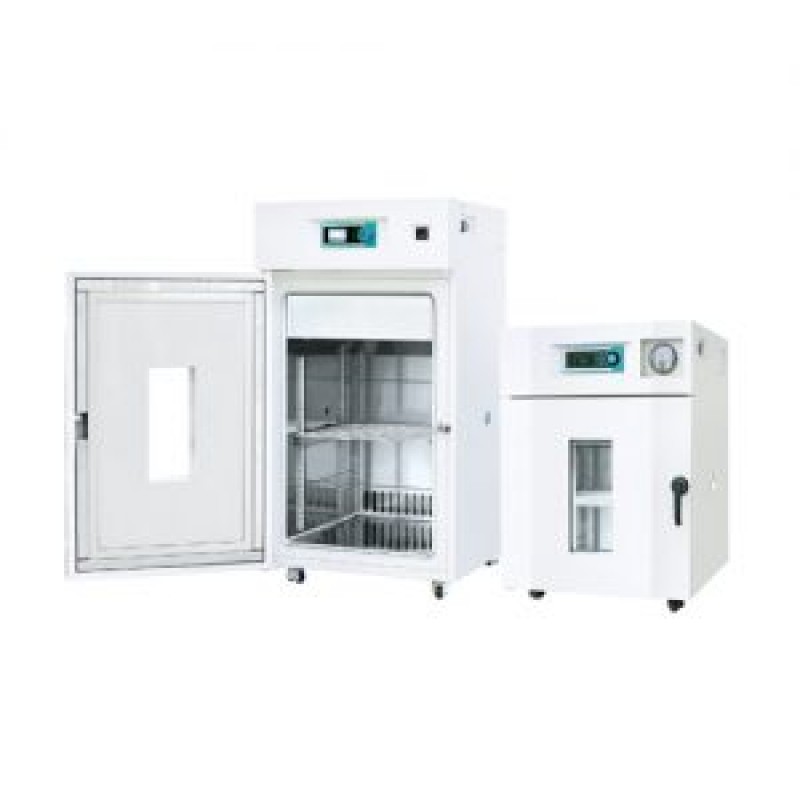

Clean Ovens, Class 100 (Programmable)
Product Features :
- Reliable HEPA filter guarantees class 100 cleanliness inside of clean oven
- Ideal for specific use such as heat treatment and drying process
- For intelligent program control
- 10 programs available for temperature ramp up and dwell control
- 10 steps per a program and 99 hours 59 minutes per a step
- Stored programs are easily linkable
- Programs can be repeated up to 99 cycles
- Pre-heating and heating time are settable before program starts
Performance
- Rapid heating performance up to maximum 300℃
- Microprocessor PID control
- Three point temperature calibration / Automatic tuning
- Forced air convection generated by two noiseless and powerful sirocco fans ensures optimal air circulation, temperature uniformity, and short heat-up time
- Adjustable dual slide vents for inner vapor circulation
- Energy efficiency is achieved thanks to optimization of the insulation system
- Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures
Convenience
- Intuitive touch screen LCD controller with easy icons and logical menus
- Dual wait on/off timer modes (1 min. to 99 hr. 59 min.)
- Convenient presetting function for 3 most commonly used temperature settings
- Rounded inner chamber corners for easy cleaning and optimal airflow
- Corrosion-resistant incoloy sheath heating element and stainless steel interior
- Threefold tempered-glass window provides clear inside view of the chamber (optional)
- USB port and RS-232 port for external control and data collection
- Casters for easy mobility during installation or relocation
Safety
- Automatic run after power interruption
- Over-current protection
- Triple independent temperature monitor system
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Alarms for open door status, temperature sensor error and temperature deviation
- Keypad lock function prevents accidental changes during operation
Product Description :
| Model | OFC-20P | OFC-40P | OFC-20HP | OFC-40HP | |||
| Chamber volume (L / cu ft) | 200 / 7.1 | 400 / 14.1 | 200 / 7.1 | 400 / 14.1 | |||
| Temperature | Range (℃ / ℉) | Amb. +15 to 200 / Amb.+27 to 392 | Amb. +15 to 300 / Amb.+27 to 572 | ||||
| Fluctuation 1) at 100℃ (±℃ / ℉) | 0.2 / 0.36 | 0.2 / 0.36 | |||||
| Variation 1) at 100℃ (±℃ / ℉) | 2.0 / 3.60 | 2.2 / 3.96 | 2.0 / 3.60 | 2.2 / 3.96 | |||
| Dimension (W×D×H) | Interior (mm / inch) | 645×750×412/25.4×29.5×16.2 | 645×750×866/25.4×29.5×34.1 | 645×750×412/25.4×29.5×16.2 | 645×750×866/25.4×29.5×34.1 | ||
| Exterior (mm / inch) | 850x1100x1170/33.5×43.3×46.1 | 850x1100x1625/33.5×43.3×64 | 850x1100x1170/33.5×43.3×46.1 | 850x1100x1625/33.5×43.3×64 | |||
| Net weight (Kg / lbs) | 190 / 418.9 | 250 / 551.2 | 190 / 418.9 | 250 / 551.2 | |||
| Shelves | No. of wire shelf (standard / max.) | 2 / 4 | 3 / 7 | 2 / 4 | 3 / 7 | ||
| Max. load per shelf (kg / Ibs) | 25 / 55.1 | 25 / 55.1 | |||||
| Electrical requirements (230V, 50 / 60Hz) | 1P, 12.0 A | ||||||
| Cat. No. | Solid door | AAH173115K | – | – | – | ||
| Window door | AAH173125K | – | – | – | |||
| Electrical requirements (380V, 50Hz) | 3P, 6.7 A | 3P, 6.2 A | 3P, 9.0 A | ||||
| Cat. No. | Solid door | – | AAH173214K | AAH174114K | AAH174214K | ||
| Window door | – | AAH173224K | AAH174124K | AAH174224K | |||
