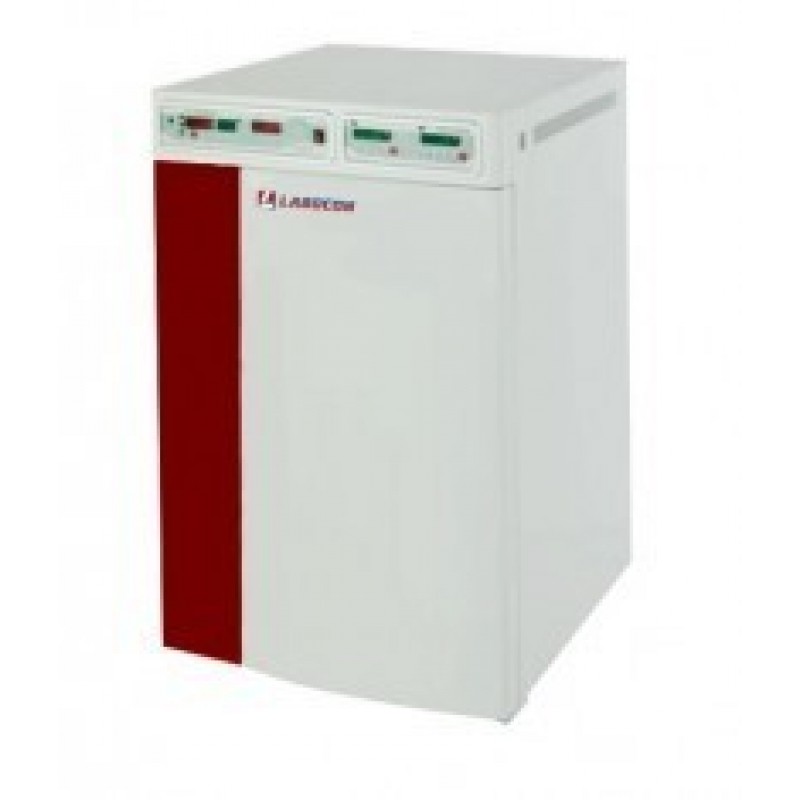

CO2 Incubator Shaker
Product Details :
- Stainless Steel SUS 304 inner chamber
- Equipped with built-in-two detachable mini shakers on 2 shelves
- Simultaneous conduction of adherent and suspension cell culture
- Maintenance-free insulated dry wall
- Microprocessor PID controller
- Dual Beam Infra-Red Sensor is used to maintain control of CO2 density
- Temperature, humidity and RPM can be viewed on the LED Display
- All six sides are directly heated and combined with P. I. D control to ensure that temperature is reached quickly and uniformity maintained. Further the system combines forced air and natural convection to maintain the best temperature uniformity
- Circulation system delivers air and moisture convection
- Built-in-shaker is run by low noise, low particle or heat occurrence, vibration-free plate BLDC Magnetic Induction Drive
- Natural humidification using water tray
SPECIFICATION
Capacity | 179 L |
Temp. Range | Ambient +5°C to 60°C |
Temp. Accuracy | ± 0.25°C at 37°C |
Humidity | ≥70% at 37°C |
Temp. Increment | 0.1°C |
CO2 Range | 0% to 20% |
CO2 Accuracy | ±0.1% at 5% at 37°C |
CO2 Increment | 0.10% |
CO2 Sensor | IR CO2 sensor |
CO2 Inlet Pressure | 0.7-1 bar |
CO2 Control | Microprocessor Digital |
Display | LED Display |
Jacket Type | Dry Wall Type (6 sides heating) |
Inner Door | Tempered safety glass door |
Outer Door | Silicon packing magnet door |
Filter | None |
Sterilization | None |
Shelves | 2 each |
Chamber Dimension | 473x528x710 mm |
Each Compartment Dimension | None |
Overall Dimension | 560x665x945 mm |
Power Supply | 220V, 60Hz |
Weight | 93 kg |
SHAKER | |
Speed | Shaker |
Shaking Motion | Orbital |
Speed Range | 30 to 200 rpm |
Speed Accuracy | ±1 rpm |
Speed Increment | 1 rpm |
Timer Range | Continuous or up to 47h 59mins |
Timer Accuracy | ±1% |
Time Increment | 1 min |
Motor | Plate type BL/DC Motor |
Drive System | Beltless direct drive |
Orbit Diameter | 25 mm |
Platform Size | 300x330 mm |
Shaker Dimension | 305x350x75 mm |
Catalog No. | 9341175362 |
Application
- Labocon CO2 Incubator Shaker is used for cell culture applications in cell biology, microbiology, proteomics, genomics, molecular biology, drug development etc.
Additional Information:
- Item Code: LCIS-201
