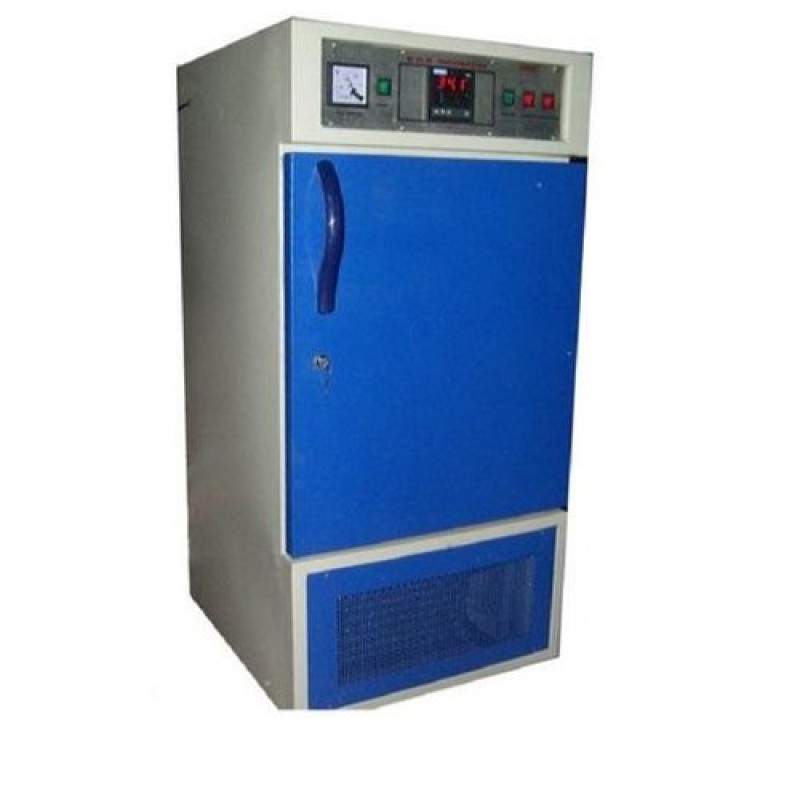

Bod Incubator 4 Cub FT
Product Details :
| Model Number/Name | RA-112 |
| Brand | Rako |
| Size/Dimension | 455 mm x 410 mm x 610 mm |
| Temperature Range | 5 to 75 degree celsius |
| Voltage | 220 V |
| Material | SS |
| Accuracy | 0.5 Degree C |
Due to our proficiency of this field, we are engaged in presentingBod Incubator 4 Cub FT. We are presenting these products to customers within given time-frame.
Specification:
- Double walled, inner made of quality, outer made of thick best quality Mild Steel powder coated.
- Insulation between inner and outer wall is done with 75mm thick glasswool to prevent any heat loss.
- Inner chamber is provided with 2/3 nos. perforated stainless steel shelves with ribs to adjust the shelves at desirable height.
- Provided with double door, inner made of thick transparent full view glass and outer door is double walled metallic properly insulated with glass wool and also provided with best quality handle, gasket, lock etc.
- Provided with door operated illumination lamp.
- and is controlled by electronically controlled by PID Microprocessor Controller with PT-100 sensor
- This controller is provided with time delay relay to control the accuracy in maintaining the temperature.
- Temp. is maintained with an . Cooling is done with ISI Mark compressor of KIRLOSKAR make which is connected to thick copper coils placed in the rear of the chamber through condenser, fan motor, capacitor, relay etc.
- Whole cooling unit is placed below the main chamber in a GI housing. CFC Free, Environment friendly.
- Heating is done with ISI mark strip type heaters placed near the cooling coils.
- Air is circulated by 2-nos. ISI mark Silicon binded motors, which are connected to balanced blowers, which operates alternatively and continuously with heating and cooling. Provided with On/Off switch, Indicators, Digital Controllers etc.
Additional Information:
- Delivery Time: 15-20 days
- Packaging Details: Wooden Packing
