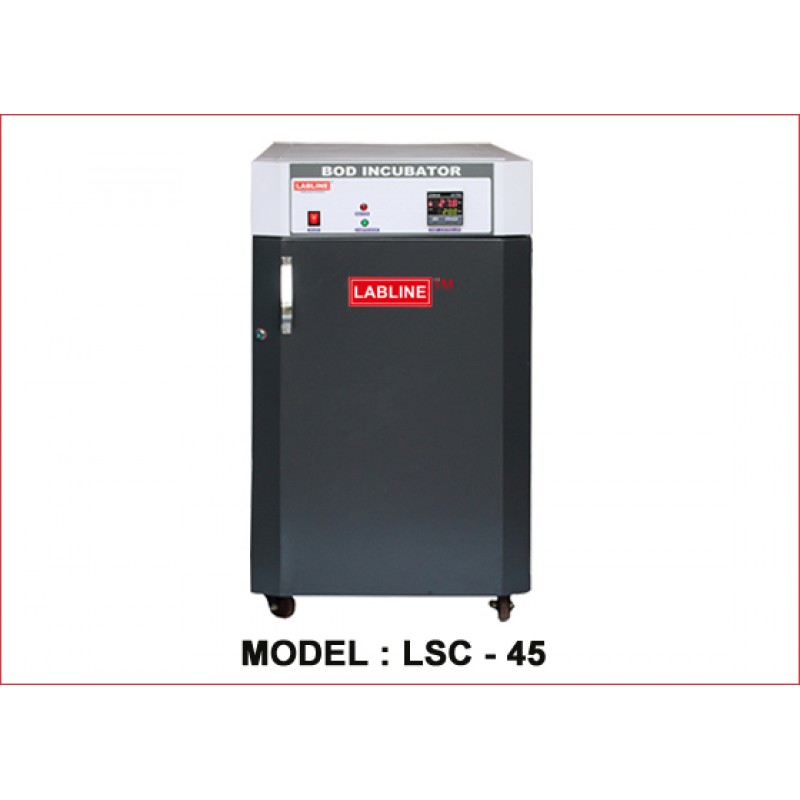

BOD Incubator

Unique Features :

• Ergonomic Design
• Superior Functionality
• Negligible Maintenance
• High-Temperature Accuracy
• Better Temperature Uniformity

Applications :

• Biological Oxygen Demand Determination
• General Incubation
• Serum studies
• Enzyme Assays test
• Microbiology Lab

Construction :

• Double-walled construction, Inner chamber made of Stainless Steel 304 grade & Outer chamber made of Mild Steel powder coated.
• OR
• Inner chamber made of Stainless Steel 304 OR 316 grade & Outer chamber made of Stainless Steel 304 grade - G.M.P. model
• The chamber is insulated by ?lling CFC Free Polyurethane foam (PUF) or high temperature glass wool in the space between outer body and chamber to prevent temperature loss.
• Double door - Outer metal body & Inner Acrylic Door.
• Inner door - made of imported transparent Acrylic which is useful to view inner sample without opening the door and loss of temperature.
• Outer door with magnetic gasket & proper handle, lock & key.
• Supplied with Adjustable Stainless Steel wire mesh shelves.
• Forced Air Circula ng System with Fan for Temperature Uniformity.
• High Quality Compressor.
• Illumination provided for inner chamber.
• Control panel with indicating Lamp for Compressor, Heater and on / off switch for mains.
• Inner chamber with smooth corners for easy cleaning.
• Castor wheets for easy movability.

Technical Data :

• Temp. Range : 50C to 600C
• Temp. Accuracy : 0.50C
• Temp. Uniformity : 10C
• Digital Temp. controller : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.1 C . Dual display one for process value (PV) & the another for Set Value of Tempreture (SV)
• Power Supply : 230 Volts A.C 50 Hz Single Phase

Heating Element :

• Heating is by specially designed air heaters.
• Hermetically sealed compressor unit for CFC free cooling system as per the capacity.

Optional Accessories :

• Micro PLC Based Control & Recording System for Reach - In BOD Testing Chmaber with in built recording, PC interface with 21 CFR Software, Dot Matrix Printer Interface.
• Data Logger for PC or Printer A achment with software.
• 4, 8, 12 Channel Data Scanner.
• Door access security system.
• Safety Digital Temperature Controller.
• Timer
• Recommended Stabilizer.
