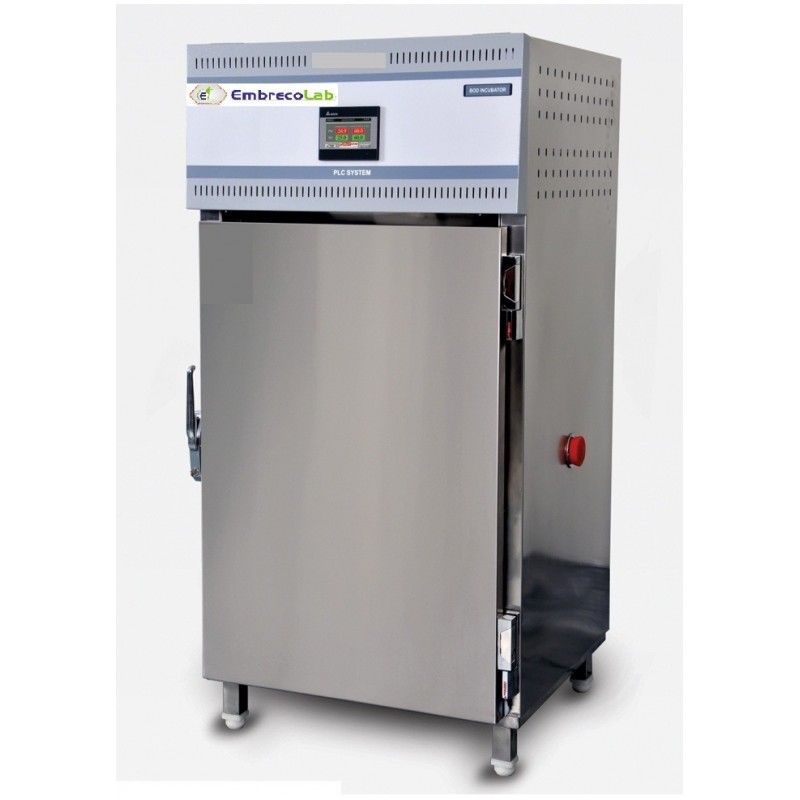

BOD Incubator

Standard Features:

• Double walled modular structure with 3” thick PUF insulation
• Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
• Interior illumination
• Inside full length observation glass door with secure gasket
• Heavy-duty door hinges and latches to maintain a secure and uniform seal
• Racks & trays – Stainless Steel with adjustable height
• 65 mm Port Hole with rubber seal to insert sensors for validation purpose
• U shaped S.S. Nichrome wire air heaters
• Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
• PLC based control system with 7” colour touchscreen HMI.
• Safety controller sensor to cut off the supply in case of overshoot and undershoot of temperature giving audio visual alarm
• Web based online monitoring
• Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
• Works on 23V AC single phase 50Hz

Optional Features:

• 21 CFR Part 11 compliance window based communication software for data management
• PLC for auto changeover of standby refrigeration system
• Stand by refrigeration system (Except for 90 Ltrs.)
• Scanner 4 point temperature scanner complete with sensors and printer interface and data storage facility.
• Mobile Alert system
• Door Access Security system

Specifications:

• Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
• GMP Model(G) : Inside S.S. 304 & outside S.S. 304
• Temperature Range : 20°C to 60 °C
• Temperature Accuracy : ± 0.2 °C
• Temp Uniformity : ± 2.0 °C

Documentation:

• Complete with IQ, OQ, PQ documents
• Operation and Maintenance manuals
• Training to end users
