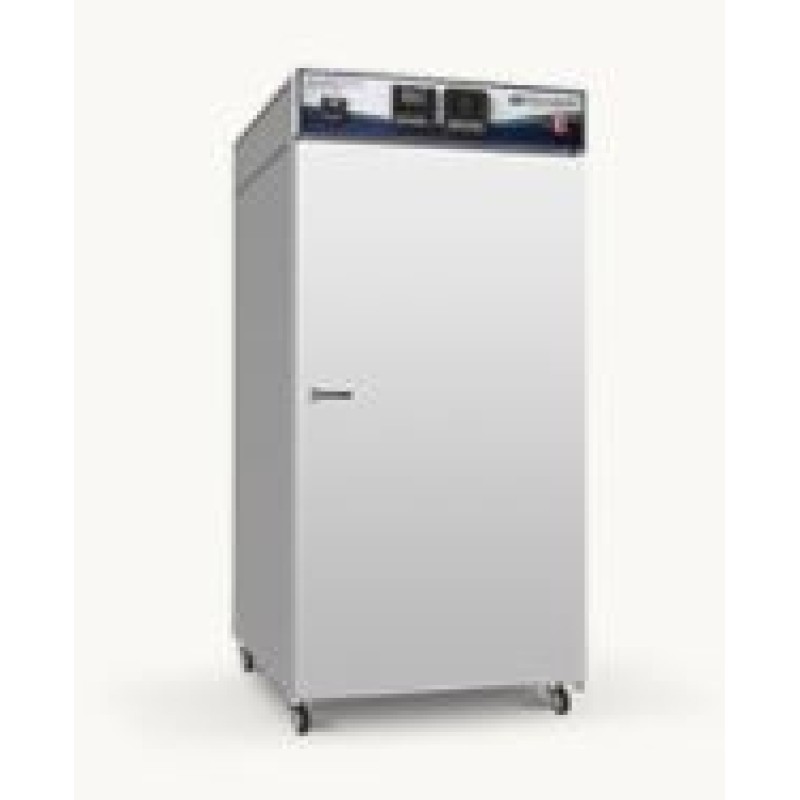

BACTERIOLOGICAL INCUBATOR

Product Details :

Standard Features:

• Double walled modular structure with 3” thick PUF insulation
• Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
• Interior illumination
• Inside full length observation glass door with secure gasket
• Heavy-duty door hinges and latches to maintain a secure and uniform seal
• Racks & trays – Stainless Steel with adjustable height
• 65 mm Port Hole with rubber seal to insert sensors for validation purpose
• U shaped S.S. Nichrome wire air heaters
• PLC based control system with 7” colour HMI.
• Safety controller sensor to cut off the supply in case of overshoot and undershoot of temperature giving audio visual alarm
• Web based online monitoring
• Works on 23V AC single phase 50Hz

Optional Features:

• Also available in advanced microprocessor based PID controller
• 21 CFR Part 11 compliance Window based communication software for data management
• Scanner 4 point temperature scanner complete with sensors and printer interface and data storage facility.
• Door Access Security system.

Specifications:

• Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
• GMP Model(G) : Inside S.S. 304 & outside S.S. 304
• Temperature Range : 10°C above ambient to 60°C
• Temperature Accuracy : ± 0.2°C
• Temp Uniformity : ± 2.0°C
• Documentation:
• Complete with IQ, OQ, PQ documents
• Operation and Maintenance manuals
• Training to end users

* TI 90 is a table top model with PID control System
