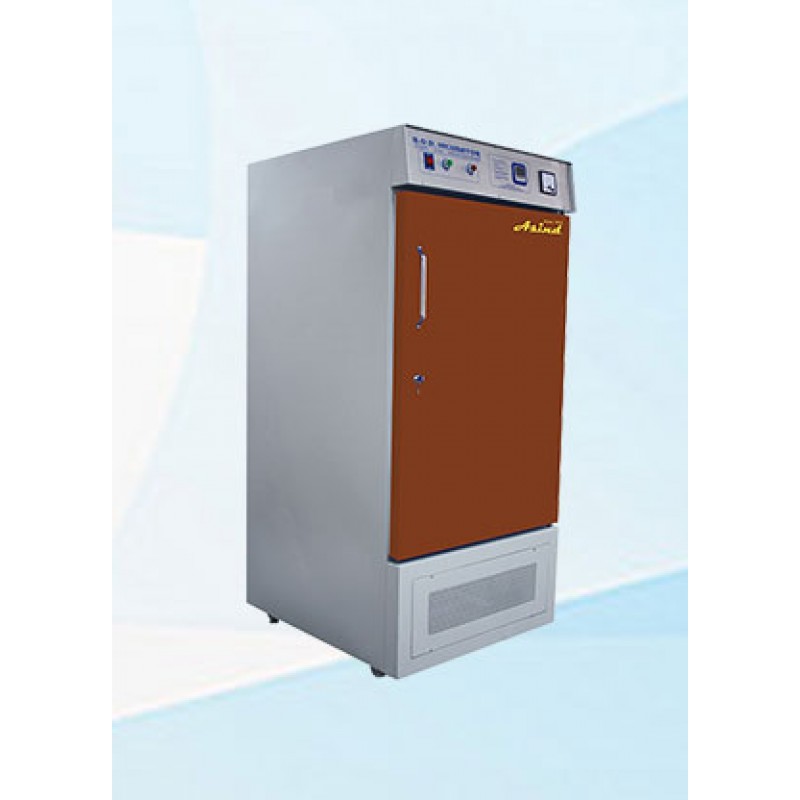

B.O.D INCUBATOR
Product Details:
This type of incubator is finding increasing use in many biology, botany, virology, oceanography, water pollution, sewage, and agriculture and food research laboratories. It provides a wide range of conditions for studies synthesizing organisms. Temperature are attainable within the cabinet, enabling the user to study the growth of organism under topical or temperature and summer or winter conditions independent of ambient temperature design to maintain constant temperature for use in making standard. B.O.D(BIO-CHEMICAL OXYGEN DEMAND) determinations on water and sewage. Arrangement for heating and cooling, temperature control from 5˚C to 50˚ C at normal room temperature, with control accuracy of ± 1˚C, makes it useful in the biological laboratory for the preservation of vaccines, such as insulin and liver extracts of 15˚C for serological and complement fixation tests at low temperatures, and for enzymatic digestions process and in the physical or chemical laboratory for general low temperature use.
- Refrigerated insulation & freezing in one unit.
- Better mineral and puff insulated to keep the surface temperature of body comfortable & avoid cooling loss.
- Silent energy saving kirloskar/ Tecumseh compressor, designed to circulate uniform air throughout the chamber with better imported coil condenser copper coil, improve temperature distribution.
- Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different height.
- KANTHAL’ A-1’ tubular heater is fitted for better accuracy.
- Safety controllers are provided with the digital temperature controller cum indicator.
- Full Features with Microprocessor Based PID temperature controller cum indicator with volt meter.
- Choose among the model with window front glass door or inner Perspex/Acrylic sheet full view door to observe the taste process inside the incubator as desired while keep temperature uninterrupted.
- Angle iron frame at bottom with caster wheel for easy movement.
- Fitted with 2 Nos. Fan (One for cooling & one for heating inside the chamber).
TECHNICAL SPECIFICATION & ODERING INFORMATION:-
VOLUME | 113 LITERS | 173 LITERS | 238 LITERS | 340 LITERS | 425 LITERS |
---|---|---|---|---|---|
Capacity (LTR) | 4 cu. Ft. | 6.1 cu. Ft. | 10 cu. Ft. | 12 cu. Ft. | 15 cu. Ft. |
Shelves | 2 | 3 | 3 | 3 | 3 |
External Chamber | MS / SS 304 | ||||
Internal Chamber | Stainless Steel 304 (Optional SS 316) | ||||
Temperature Range | 5°C to 50°C | ||||
Temp. Accuracy | ± 0.5˚C or Better | ||||
Display | Backlit LED Display | ||||
Temperature control | Microprocessor P.I.D controller | ||||
Door | Solid insulated door (with glass & without glass) w/ lock | ||||
Shelves | Stainless steel Shelves (2 to 5), removable | ||||
Refrigerant | R134a / CFC Free | ||||
Power | 220 Volts | ||||
Compressor | Kirlokskar/ Tecumseh Model as per size requirement. | ||||
Power supply | 220/230V A.C single supply; 50Hz | ||||
Duty cycle | Continuous | ||||
Optional | – Caster wheels |
