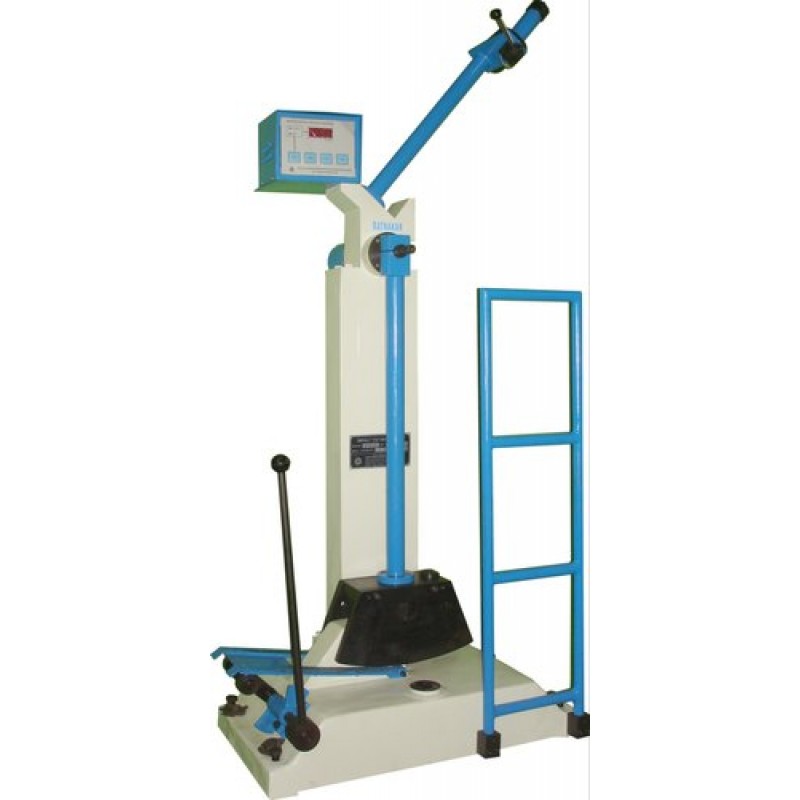

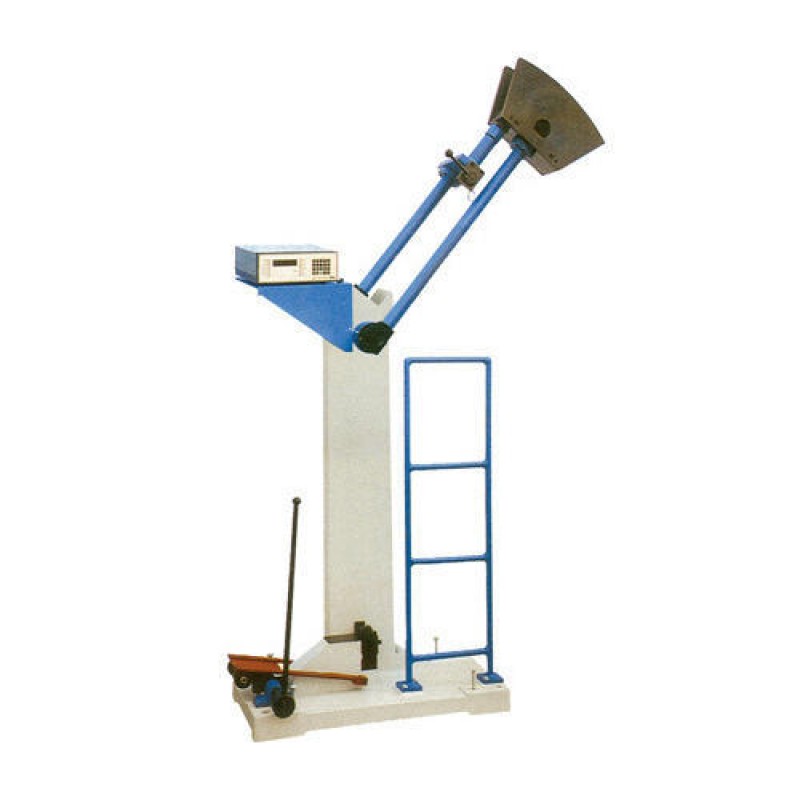

Digital Impact Testing Machine RI 300 E

Product Details:

Since the inception of our firm, we are offering a quality assured array of Digital Impact Testing Machine.

Description:

• Electronic digital display
• Simple construction of pendulum izod so that izod or charpy machine, machine can build at sight
• Interchangeable stickers for izod & charpy positions
• Positive pendulum lock in izod & charpy positions
• Safety guard for protection
• A braking arrangement for stopping the pendulum
• Optional printer interface

Technical Specification And Features:

• Suitable for Charpy & Izod Impact tests on various materials. Works on Pendulum principle.
• Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.
• The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.
• Safety guard for the operator is provided.
• Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a resolution of 0.5 Joules
• Pendulum drop angle for Charpy is 140° & for Izod is 90°.

Optional Accessories:

• Caliper gauge for checking V notch for Izod & Charpy.
• Templates for checking 10 x 10 mm cross section of Izod / Charpy test specimen.
• Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius.
• Izod support for 0.450" dia Izod round specimen.
• Self centering tong for quick and accurate setting of Charpy test specimen.
• ''V'' notch milling cutter.

Additional Information:

• Item Code: RI-300E
