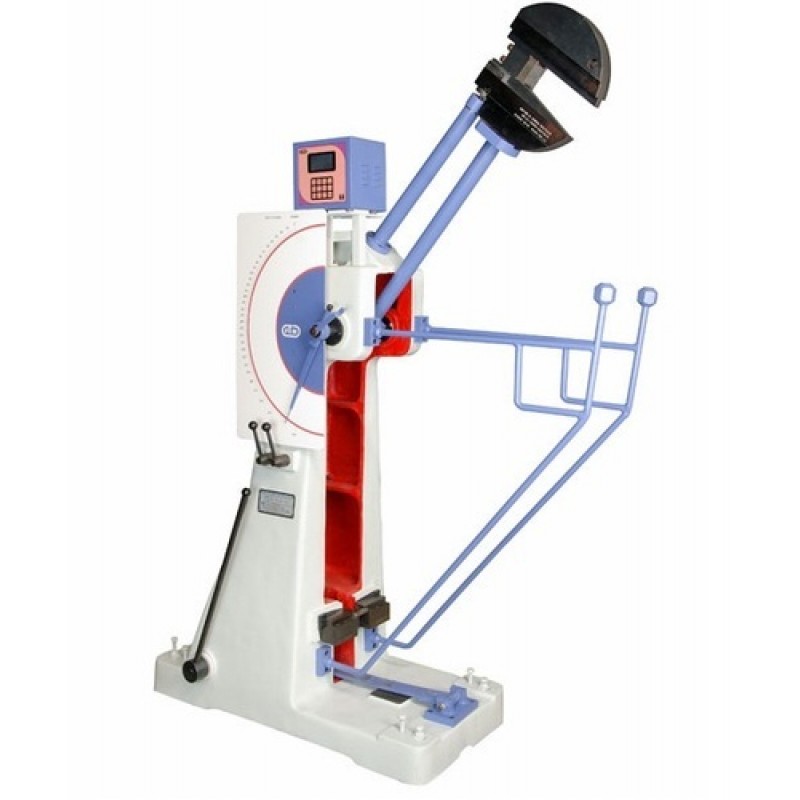

Description | TFIT-300-N, TFIT-300-EN, TFIT-300-D | TFIT 300 ASTM,
TFIT 300 ASTM-D |
| CHARPY | IZOD |
Pendulum Drop Angle (Degree) | 140 | 90 |
Pendulum Effective Weight (Kg.) | 21, 300 | 21500 |
Striking Velocity of Pendulum (m/ Sec) | 5.508 | 3.994 |
Pendulum Impact Energy (Joules) | 300 | 170 |
Min. Scale Graduation (Joules) | 2 | 2 |
(Only for FIT 300 D) | 0.5 | 0.5 |
Distance between axis of pendulum to center of strike (length of pendulum in mm) | 853.5 | 813.5 |
Max. Total friction & Wind age losses | 0.5% of max. Impact energy | 0.5% of max. Impact energy |
Striking edge | . | . |
a. Angle (Degree ) | 30 | 70 |
b. Radios of Curvature (mm) | 2 | 0.7 |
c. Width at tip ( mm) | 18 | -- |
d. Horizontal relief (Degree) | -- | 10 |
e. Vertical relief (Degree) | -- | 5 |
Specimen Anvils and supports |
|
|
a. Suitable for max. specimen cross section(mm) | 10x10 | 10x10 |
b. Distance between specimen anvils (mm) | 40 | -- |
c. Included angle of Anvil tip (degree) | 79 | -- |
d. Radius of curvature at Anvil tip ( mm) | 1 | -- |
Overall size (mm) (approx) | 760(L) x 440 (w) x 1925(H) | 955 (L) x430(W)x2070 (H) |
Net weight (kg) (approx) | For model TFIT 300 N : 300 For model TFIT 300 EN : 450 For model TFIT 300 D : 450 |
|
Fine Testing Instrument (India)
