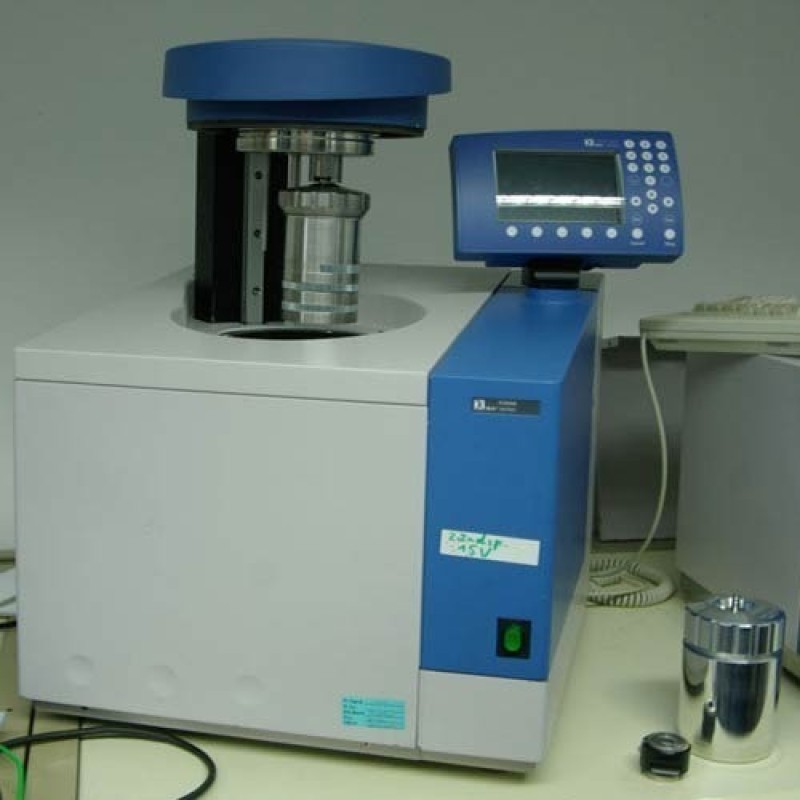

Bomb Calorimeter

Product Details :

Usage/Application	Laboratory
Material	Stainless Steel
Temperature Control Range	5~50deg C
Temperature Uniformity	+- 2 deg C

Testing of Bomb:
·         Each Bomb is tested before it leaves the factory, which gives the results of hydraulic testing under a pressure of 300 atmosphere (4400 psi.) Maintained for            a  period of ten minutes without sign of leakage. The maximum deformation must not exceed the specified limits.

Calorimeter Vessel:
·         The vessel is made up of copper and is chromium plated. It included a Bomb support that ensures proper positioning of Bomb in the vessel.

Water Jacket:
·         The outer container of Jacket is made up of copper and is chromium plated both inside and outside or S.S. The top is closed by a Bakelite cover. A terminal            block is fitted on the top of the container so that connections can be made from the firing control.

Offset Stirrer:
·         The stirring mechanism supplied gives sufficient turbulence for effective stirring, While no heat is imparted to the calorimeter water. It consists of an                    impeller driven by a stirrer at a constant speed. The offset arrangement whereby the motor drives the impeller via belt precludes any possibility of                        heat transfer between motor and calorimeter Vessel contents.

Electronic firing unit with digital thermometer printer:
·         The unit incorporates a Digital Beckmann Thermometer for the precise measurement of the Rise in temp. and an electronic circuitry that provides an                    electrical means for firing the samples. This unit also has a printer that prints the temp. readings are being recorded by the printer continuously so the                  operator is totally free do any other job thus saving operators time and the human errors involved with recording the readings are also eliminated. Socket              for stirrer terminals for fuse wire are also provided at the back side of the unit.

Crucible:
·         Various types of crucible are available but the standard supplied with the outfit beings a stainless steel crucible of 8 ml.
·         Capacity which fits in the standard support ring provided with the outfit

Additional Information:
·         Item Code: GE-5055
