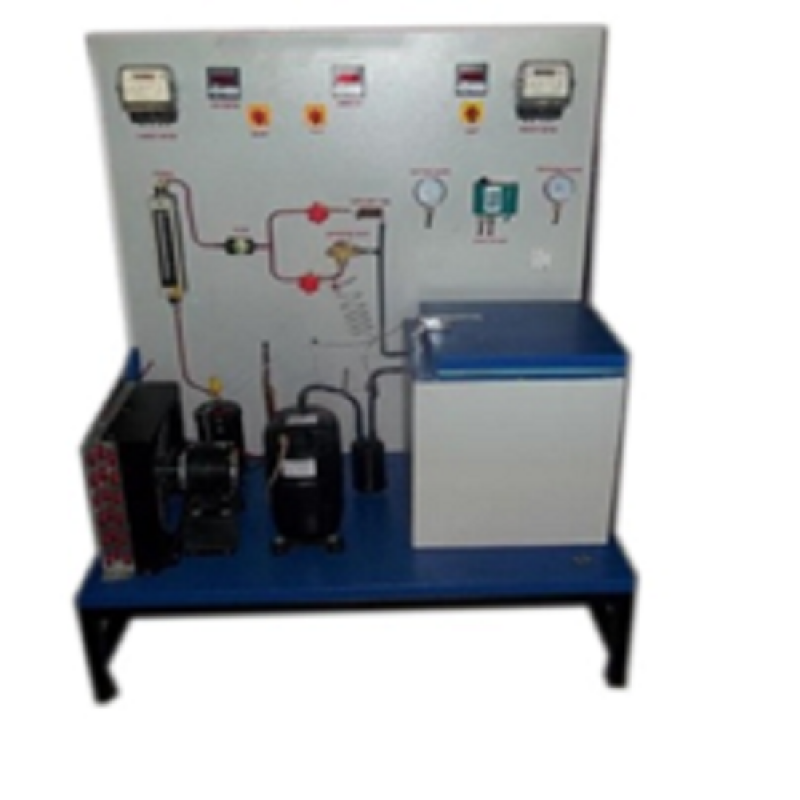

ICE PLANT TUTOR

Product Details :

SPECIFICATION:-

Hermetically sealed compressor: 112 hp cap. Air cooled condenser : l/2hp, 12" x 13" x 2 rows expansion device: thermostatic expansion valve(10 to -40 dec) fan motor with blade: l/35 hp expansion device: thermostatic expansion valve(10 to -40 dec) rotameter: 0.6 to 62 lph (eureka) filter drier: dm-50(danfoss) enery meter: 2.5 - 5 amps solenoid valve:1/4" flare thermostat: for compressor control (u 50- 1018) pressure/compound gauges: for hpJp measurement digital temperature indicator : 50 to + 150oc thermocouples(5 no.): k type (cr/al) lp/hpcutout: mp15 (danfoss) refrigerant: r-134a brine tank:762*690*6'10 mm(mild steel) ice cans: 50*200*325 mm-10 no.(galvanized iron) brine solution: calcium chloride (50kg)
