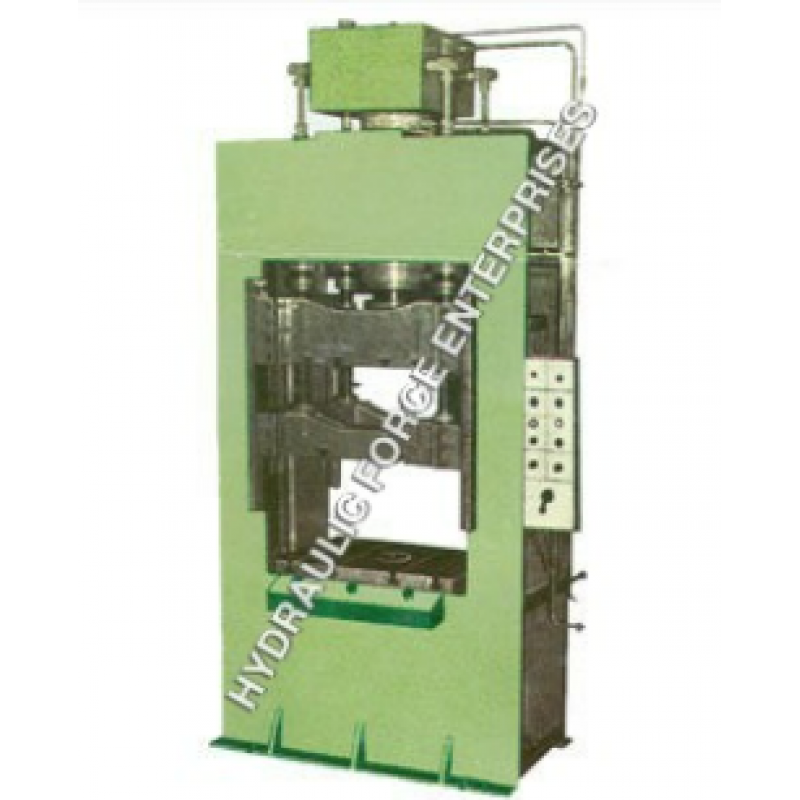

Hydrulic Deep Drawing Press

Leveraging on our wide experience and knowledge in this domain, our company is considered as one of the well equipped manufacturers and exporters of Hydraulic Deep Drawing Press. Widely used for manufacturing deep drawing products, the drawing press is manufactured using superior quality raw materials and latest technology. We manufacture this press in compliance with the set industry standards. Hydraulic Deep Drawing Press offered by us is customized as per the requirements of the clients. We offer this drawing press to the clients at market leading prices.

Specifications

Capacity (Ton)	100	150	200	250	300	500
Bed Size mm X mm	800 X 800	900 X 900	1000 X 1000	1200 X 1200	1500 X 1500	1800 X1600
Ram Stroke In mm	400	450	550	650	750	900
Working  Pressure Kg/cm2	210	210	210	210	210	210
Day Light Gap in mm	650	750	900	1000	1100	1250
Die Cushion Cap.	60	75	100	125	150	250

All Sizes in mm.
