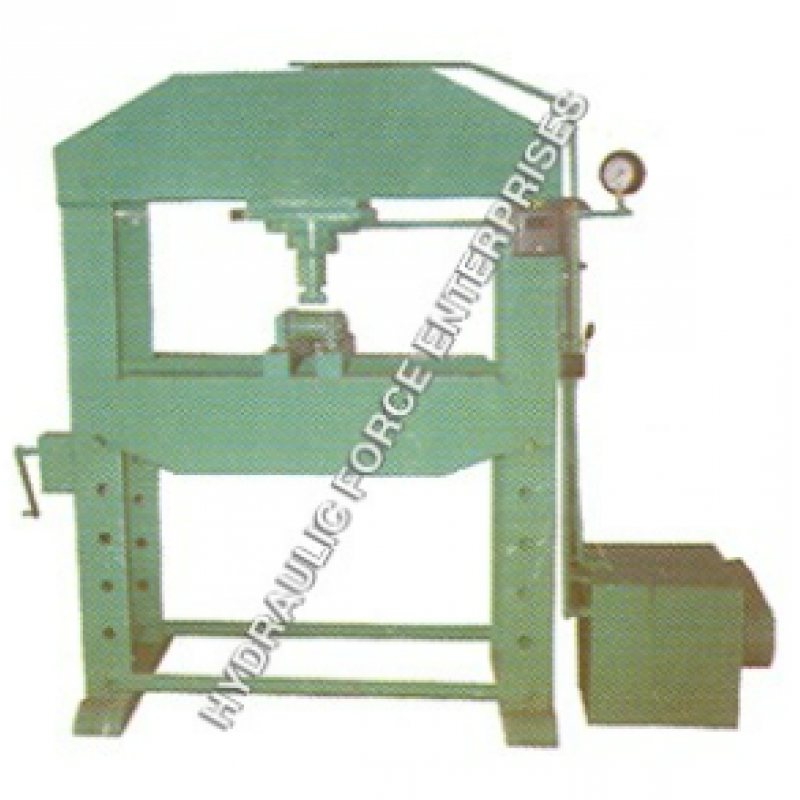

Hydraulic Workshop Press
Relying on our wide experience and knowledge in this sector, we are counted amongst the top most leading and reputed manufacturers of Hydraulic Work Shop Press (Motorized). Our offered range of hydraulic press has high production capacity and is in compliance with international standards and norms. Owing to their attributes like high performance and superior functionality, this Hydraulic Work Shop Press (Motorized) is widely used in pressing, punching, straightening, bending and breaking. We make sure that the entire process of manufacturing is done under strict supervision of our skilled and highly experienced senior professionals.
Specifications:
Specifications:
Cap.In Ton | Working Length | Working Breadth | Minimum Distance Ram to Bed | Maximum Distance Ram to Bed | Ram Stroke | Ram Diameter | Working Pressure Kg/cm2 | Motor H.P |
5 | 500 | 125 | 75 | 600 | 100 | 60 | 200 | 2 |
10 | 600 | 150 | 75 | 600 | 125 | 80 | 200 | 2 |
15 | 650 | 175 | 75 | 600 | 150 | 100 | 200 | 2 |
25 | 850 | 300 | 175 | 900 | 175 | 125 | 200 | 3 |
50 | 1000 | 400 | 175 | 950 | 200 | 180 | 200 | 3 |
75 | 1125 | 500 | 175 | 950 | 225 | 220 | 200 | 5 |
100 | 1250 | 600 | 175 | 950 | 240 | 254 | 200 | 5 |
150 | 1300 | 625 | 175 | 1000 | 250 | 310 | 200 | 7.5 |
200 | 1325 | 625 | 175 | 1000 | 275 | 360 | 200 | 10 |
