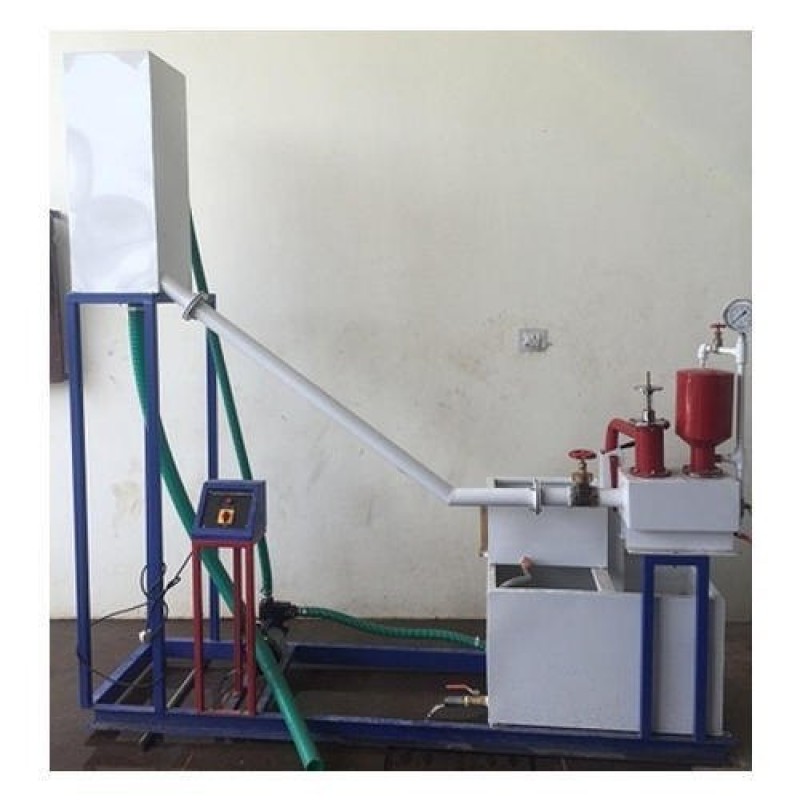

Hydraulic Ram Test Rig

Product Details:

Country of Origin	Made in India
model number	SSIFMHL-007
brand name	saini
- Hydraulic ram	Supply head 1.0 m, Delivery head 4 meter (max.)
- Water pump	1 HP pump, Crompton make.
- Sump tank	800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material )
- Measuring tank	For waste water: 400 x 350 x 250 mm size, Capacity 35 liters approx, Fitted with Piezo-meter Tube
- Overhead tank	Size : 400 x 400 x 750 mm, Capacity 120 liter approx. (stainless steel material )
- Air vessel	Suitable capacity
- Stop watch	Electronic type
- Pressure gauge	Bourdon type , range 0-1 kg/cm2
- Pipe fitting	GI pipe.

SAINI SCIENCE INDUSTRIES manufacture of hydraulic ram test rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality hydraulic ram test rig. Hydraulic Ram is used for pumping small quantity of water at high head, when large quantity of water at small head is available. It operates on the principle that if flow water is suddenly brought to rest in a long pipe, a phenomena known as water hammer occurs, wherein a pressure wave travels along the pipe. This principle is used in the Hydraulic Ram to pump water. The set-up consists of a box incorporating pulse and non-return valves and a supply reservoir on a stand which is fed by the overhead tank. An air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic.
