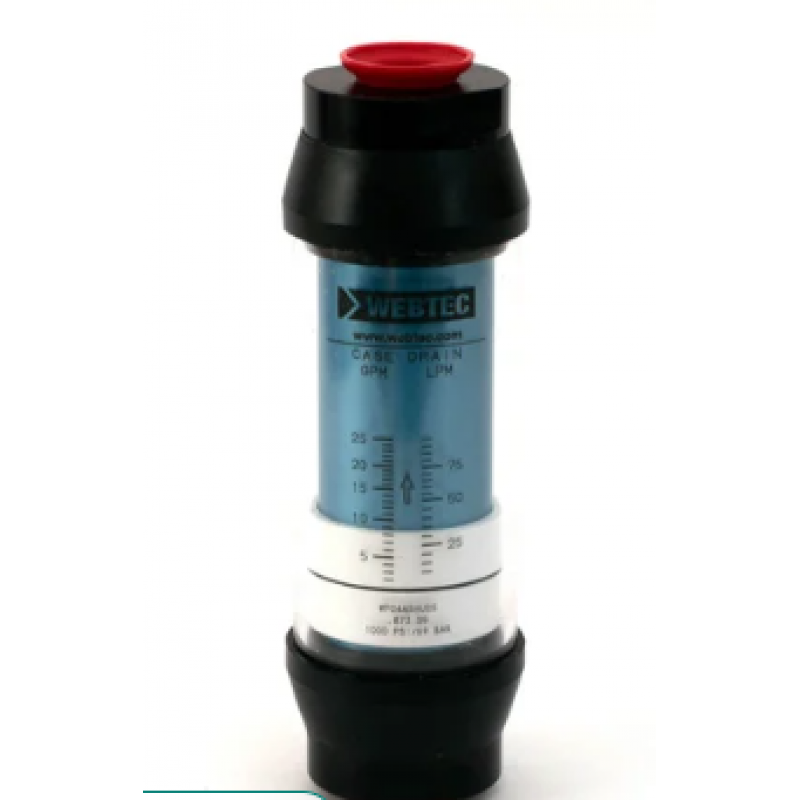

Hydraulic Flow Monitor
Product Details:

Brand	Webtec
Application Media	mainly oil
Usage/Application	material handling equipments
Material	aluminium/brass
Display	Analog
Color	greyish/yellowish
MOQ	2

The WPB series in-line flow monitors are designed for continuous monitoring or intermittent use for trouble-shooting or commissioning industrial or mobile hydraulic systems.
                    The tubular scale is easily read through the clear polycarbonate window and ensures checks can be made to determine pump performance and setting of flow control valves. The unit is fully sealed for weather tight or wash down applications.
                    Compatibility with hydraulic fluids in mobile, industrial or other applications such as lubrication or coolant systems is not a problem. The WPB series flow monitors do not require straight inlet or outlet piping or require vertical installation. The advanced design of the sharp edged orifice ensures good reliability over a wide viscosity range and minimises the effect of contamination.
Features
Economical solution, accuracy 4% FS
From 0.5 up to 550 lpm at 240 bar
Flow Switche and transmitter Models available
Suitable for oil, water - glycol & phosphate ester

Specifications:
Measuring accuracy:
± 2.5% of full-scale in the centre third of the Measuring range.
± 4% of full-scale over the entire scale range
