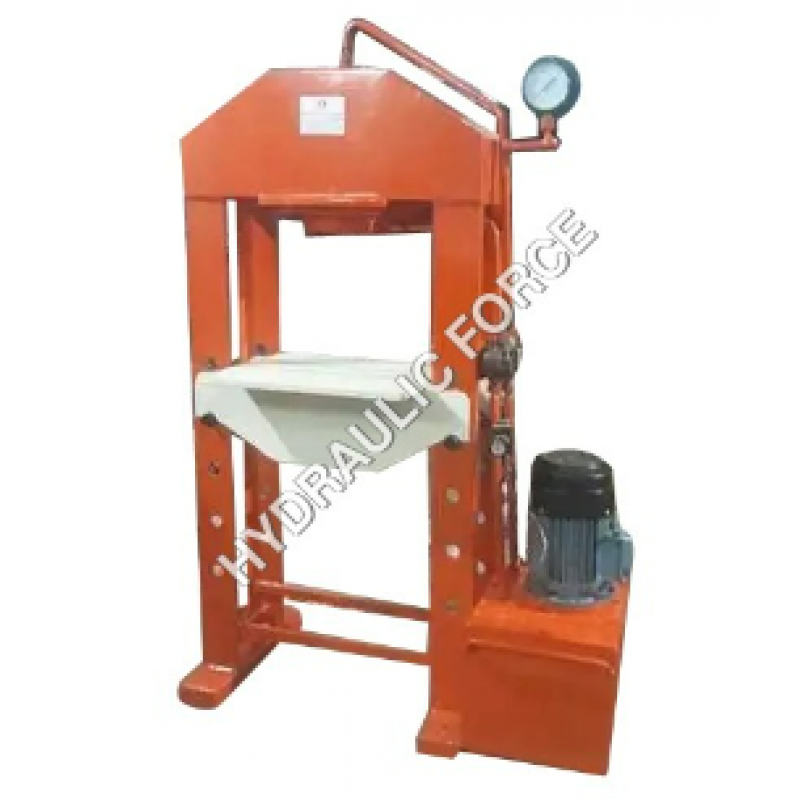

Hydraulic Fan Shaft Pressing Machine
These machines are suitable to press shaft in stator of fan & exhaust fan. Available in two sizes:
Cap.In Ton | Working Length | Working Breadth | Distance Ram to Bed | Ram Stroke | Ram Diameter | Working Pressure Kg/cm2 | Motor H.P |
10 | 350 | 200 | 300 | 250 | 90 | 160 | 2 |
20 | 500 | 200 | 500 | 450 | 125 | 160 | 3 |
