Hybrid Distributed Control System Trainer
This Distributed control System Trainer outlines the principle of Distributed control System used in Industrial Environment. The SCADA software & an interfacing package, PLC /Hybrid Controller / Honeywell C 300 DCS Master Controller based data logging & Distributed Control facility gives the overall idea regarding its application. Master Controller acquires Data, Send/Receive commands to remotely placed Controllers over USB / RS 485/ Ethernet/ Modbus/ TCP-IP/HART Network. Thus Master Controller Controls Process Plants forming Distributed Control System.
KEY WORDS:
Distributed Control System.
PLC / Hybrid Controller/ DCS Controller (True DCS) Based Process Control Techniques.
SCADA Based Process Control
USB/RS 485/ Ethernet/ Modbus/ TCP-IP/HART Communication
Process Plants such Flow-Level-Pressure-Temperaure Control Trainer shall be hooked up with DCS (Distributed Control System Trainer)

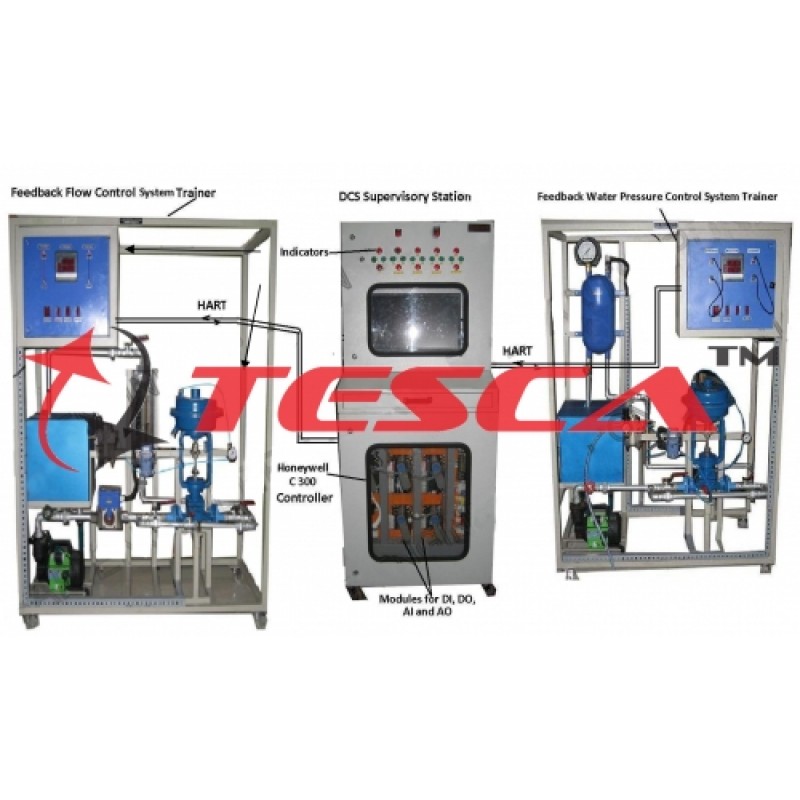

* To demonstrate proper Operation of the DCS, you will need to hook up the Supervisory Station to the below mentioned Process Control Loops
* The DCS system is supplied complete with Software, Controller, network module & I/O modules that are needed to monitor & control the process plant.
OPTIONAL LOOPS/ PROCESS PLANTS TO BE HOOKED UP WITH DISTRIBUTED CONTROL SYSTEM
*You can select any of the following Loops as per your requirement
A] FLOW CONTROL SYSTEM TRAINER –52221 to 52224
B] LEVEL CONTROL SYSTEM TRAINER – 52225, 52226, 52227
C] WATER PRESSURE CONTROL SYSTEM TRAINER – 52228
D] AIR PRESSURE CONTROL SYSTEM TRAINER – 52229
E] AIR TEMPERATURE CONTROL SYSTEM TRAINER – 52230
F] WATER TEMPERATURE CONTROL SYSTEM TRAINER – 52231
G] CASCADE CONTROL SYSTEM TRAINER – PCST – 52240
H] RATIO CONTROL SYSTEM TRAINER – PCST – 52242
RANGE OF EXPERIMENTS:
Study of Distributed Control Systems
Study of Proportional (P), Integral (I) and Derivative control (D) Actions.
Study of PLC Based (52243)/ Hybrid Controller Based (52244 )/ Advanced DCS Based (52245) Process Control.
Study of operation and calibration of transmitters, I/P converter and Control Valve.
Study of Communication Protocols such as - USB/RS 485/ Ethernet/ Modbus/ TCP-IP/HART
Study of Individual Process Plants hooked up with the DCS.
Study of SCADA Application Software/ Computerized Control of Process Plants.
Features:
Three Different Options to make the meet the requirements of the User viz.:
A] BASIC DCS TRAINER -52243
B] HYBRID DCS TRAINER - 52244
C] ADVANCED DCS TRAINER (52245 - TRUE INDUSTRIAL DCS)
Understand the concept of Distributed Control System.
User Friendly, Self Explanatory Systems.
Explains the modern Process Control Techniques used in Industries
Enhanced Electrical Safety Considerations.
Training Manual & Mimic Charts for Operation Ease.
System Frame with Caster Wheel Arrangement for ease in movement.
M.S. powder coated cubical plant with standard Instrument Mountings.
Inbuilt Safety Measures to avoid improper usage.
Computer Interface, SCADA Application software connectivity for analysis of Process Plants.
System Dimension: 4.5 Ft. (L) X 1.5 Ft. (W) X 4.5 Ft. (H)
