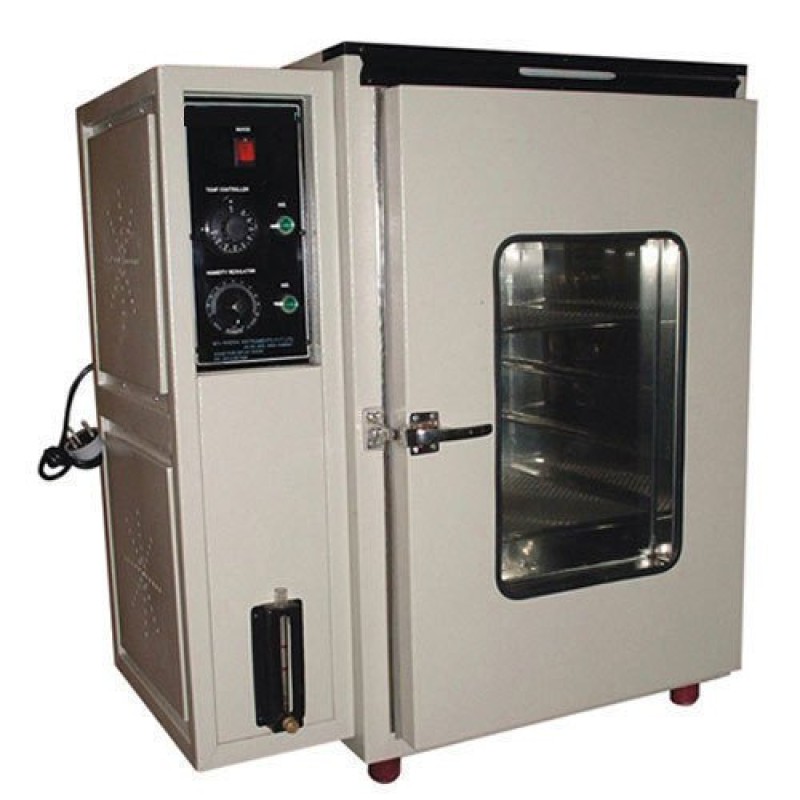

Humidity Chamber
Product Details :
| Temperature Range | 5 Degree C to 60 Degree C |
| Temperature Accuracy | +- 0.5 Degree C |
| Temperature Uniformity | +- 1 Degree C |
| Temperature Sensor | PT-100 |
| Temperature Controller | PID Temperature Controller Dual Led Display Of SV & PV |
| Humidity Range | 40% to 95% RH |
| Humidity Accuracy | +-3% R |
| Humidity Controller | Microprocessor PID Controller Dual Display Of SV & PV, Low / High Buzzer |
| Interior illumination | LED Light |
| Heaters | 'U' Type Tubular Heater |
| Refrigeration System | CFC Free Compressor |
| Safety Features | HRC Fuses For Compressor Heater & Mains, Time Daily Circuit For Safety Of Compressor |
| Humidity System | SS Tank With Heater,Low Water Buzzer, Auto Filling Water System |
| Power Supply | Single Phase 230 Valts A.C. |
| Air Circulation | Motorized Blower |
| Interior | Stainless Steel 304/316(GMP model) With Mirror Polish |
| Exterior | Heavy Gauge M.S. With Powder Coated Or S.S.304 In GMP Model |
| Chamber | Double Walled With Insulation |
| Exterior Doors | Solid Doors Are Provided With Magnetic Gasket And Lock & key |
| Inner Doors | Glass Door To View Samples |
| Controls Panel | Consists of MCB, Mains On & Off switch, On/Off Switch for Light, Digital Controller, LED Indicator |
Temperature & Humidity :
The temperature range of our humidity test chambers is 10°C to 60°C; while the humidity range is 35% to 95% RH. Humidity chambers are ideal for storage conditions 25°C at 60% RH, 40°C at 75% RH, 30°C at 65% RH and 25°C at 40% RH.
Refrigeration System :
For refrigeration, we use standard brand CFC free compressors in our humidity chamber.
Heating :
SS tubular air heaters fitted to generate warm temperature inside the chamber.
Humidity System :
For humidity system, we use stainless steel tank and immersion heater. It also features automatic water filling and low water safety device.
Air Circulation :
Air circulation is maintain uniform temperature and humidity across the chamber; therefore, we use our humidity chambers with motorized blower assembly.
Control System :
Controller is control set desired temperature and humidity range. So we use branded PID controllers in our humidity chamber which feature set value (SV) and process value (PV).
Illumination :
Interior illumination is done by LED light.
Safety Features :
Each humidity chamber is built in many safety features ensuring you working with a trustable machine. Each chamber is fitted with over temperature protection.
| Model No. | Inner dimension W X D X H in cms | Size in CU.FT/LTR | No. of Shelves |
|---|---|---|---|
| NICHC-170 | 50 x 50 x 70 Cm. | 6Cu.Ft/170Ltr. | 2 |
| NICHC-280 | 55 x 55 x 100 Cm. | 10Cu.Ft/280Ltr. | 3 |
| NICHC-340 | 60 x 60 x 100 Cm. | 12Cu.Ft./340Ltr. | 3 |
| NICHC-450 | 65 x 65 x 115 Cm | 16Cu.Ft./450Ltr. | 4 |
| NICHC-600 | 60 x 80 x 125 Cm. | 21Cu.Ft./600Ltr. | 4 |
