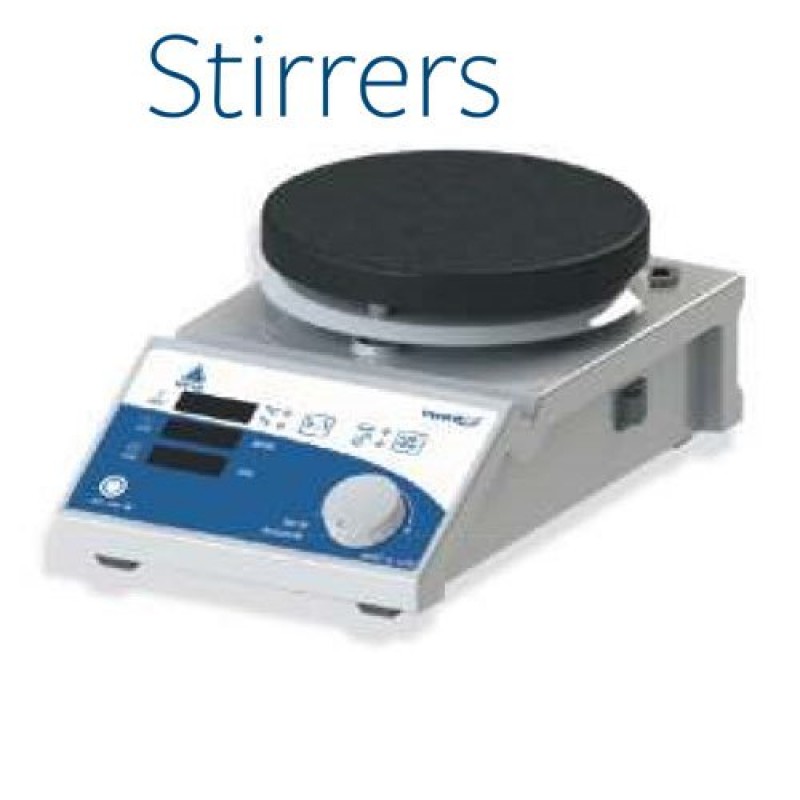

Hot Plate with Magnetic Stirrer
Product Details :
| Temperature Range | Ambient to 350 Degree C |
| Item Code | VWRA444-1083 |
| Voltage | 230V |
| Frequency | 50 Hz |
| Watts | 650 watt |
| Included Accessories | Rod Stainless Steel length 400 mm, 0 12 mm, Boss head |
| Magnetic Stirring Bar | 35mm X 9mm |
| Moulded PT | 100 sensor probe |
| Heating Plate material | Ceramic coated / Stainless Steel |
| Dimension of Heating Plate | 150 mm |
| Three display windows for | Temperature, RPM & Time |
| Speed range | 50 -1500 RPM |
| Maximum stirring bar length | Can use up to 80mm bar (at lower speed) |
| Adjustable safety cut off | 50 - 400 Degree C |
| Control accuracy of PT 100 | +-1k |
| Dimension of the Hot plate body | 273 x 160 x 102 mm |
| Weight of body | 3.3 kgs |
| Permissible ambient temperature | 5 - 40 Degree C |
| Permissible relative moisture | 80% |
| RS 232 interactive | Yes (for programming) |
| IP class | 22 |
| Vessel capacity | Upto 2 L Beakers |
| Material Grade | SS 304 |
Other Details:
- Aluminium Moulded Construction
- Ceramic coated top plate, chemically resistant and scratch resistant.
- Large top plate to assist beakers upto 2000 ml.
- Thermal insulation for cool body operation. Digital set up temp ature controller with independent Settable safety cut-off for maximum temperature limit for top plate or probe 4 Installed with double PT sensors for safety & fail safe operating mechanism. 4 Hot top indicator for temperature above 50°C even when switched off.
- Inclusive PT 100 temperature sensors probe. 4 Audible alarm at time cycle end for safety and ease of unsupervised operation. 4 Digital setup of time with independent LED display. 4 Selection of Celsius and Fahrenheit. 4 Selection of hot plate and probe temperature control.
- Error code display at any kind of failure.
- Digital setup of RPM with independent LED display. 4 Count-up indication of minutes and hours.
- Single multi-turn intelligent knob Operation.
- Even heat distribution.
- High magnetic strength.
- Included Accessories:
