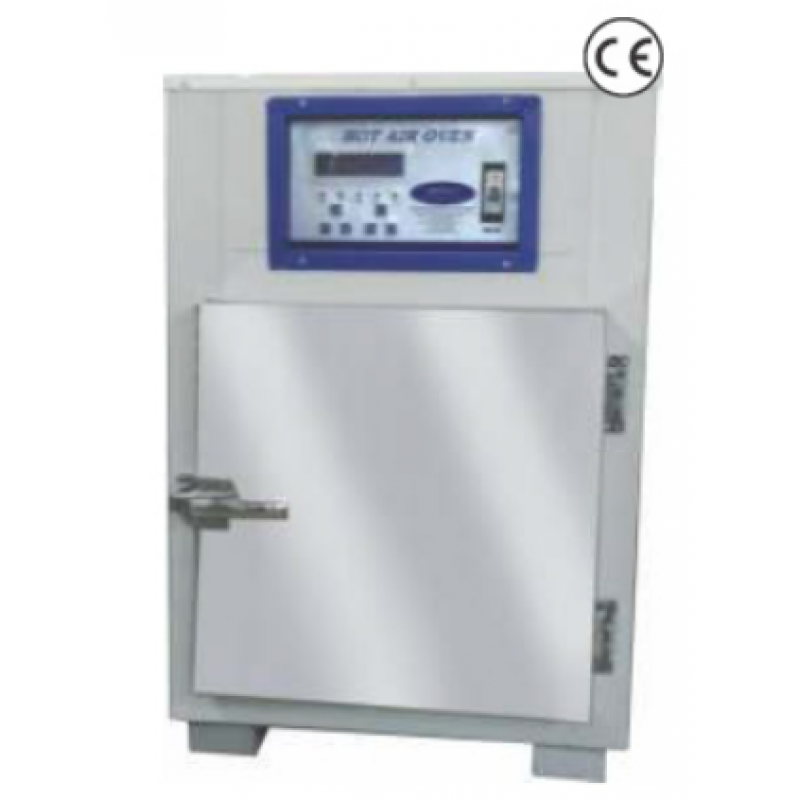

Hot Air Oven

 Precise hot drying & sterlization.

 Better mineral / Blanket insulation keeps the surface of the instruments from being burnt.

 Silent Hot Air Blower, unique Design of Air Circulation provide throughout uniform air movement & improved Temperature distribution.

 Unique design of Ventilation keep the surface of the instrument from being burnt even when the instrument i.e. Oven Temperature maintained at above 200° C.

 304 grade S. Steel interior, corrosion resistant long life operation having adjustable shelves to make more space for different height

 Kanthal A-1 super quality coil shaped heaters duly embedded / wound on the sides & bottom for better accuracy,

 Best quality Bi-Metalic Hydraulic capillary Thermostate or ful features with Digital Temperature Controler Cum Indicator & Microprocessor Based PID Temperature Controller Cum Indicator having alarm facility (On Customer Request) and timer.

 Made of High Quality Aluminium, Stainless Steel, M.S., Rubber and other Material.

Technical Specifications :

MODELS IIC 101A IIC 101B IIC 101C IIC 101D IIC 101E IIC 101G IIC 101F Capacity liters 28 45 95 125 224 252 336 Interior (mm) 300x300x300 350x350x350 450x450x450 450x450x605 605x605x605 605x450x900 605x605x900 Heater Wattage "W" 1.0 KW. 1.0 KW. 1.5 KW. 2.0 KW. 2.5 KW. 2.5 KW. 3.0 KW. Shelves 1/2 1/2 2 2 2 3 3

Technical Parameters :

• Control Panel : With Mains & Load Indicator, Fan Switch & Mains Switch, Temperature Controller
• Temperature Rage : Ambient to 250°C
• Temperature Stability : s 0.5°C
• Material : CRC/Miki Steel with Powder Coated,
• Optional : Stainless Steel Gate/ Full body Stainless Steel (on Customer Demand)
• Power Consumption : 220/230,4 AC Supply Single Phase 50 Hz
• Safety Function : Temperature Over Shoot High 8 Low Temperature Alarm. +/- 5° with MCB
• Optional : Outer S. Steel 304 grade body (On customer demand)
                     Front Toughened Glass door for Temp. up to 200°C Working
• Duty Cycle : Continuous
