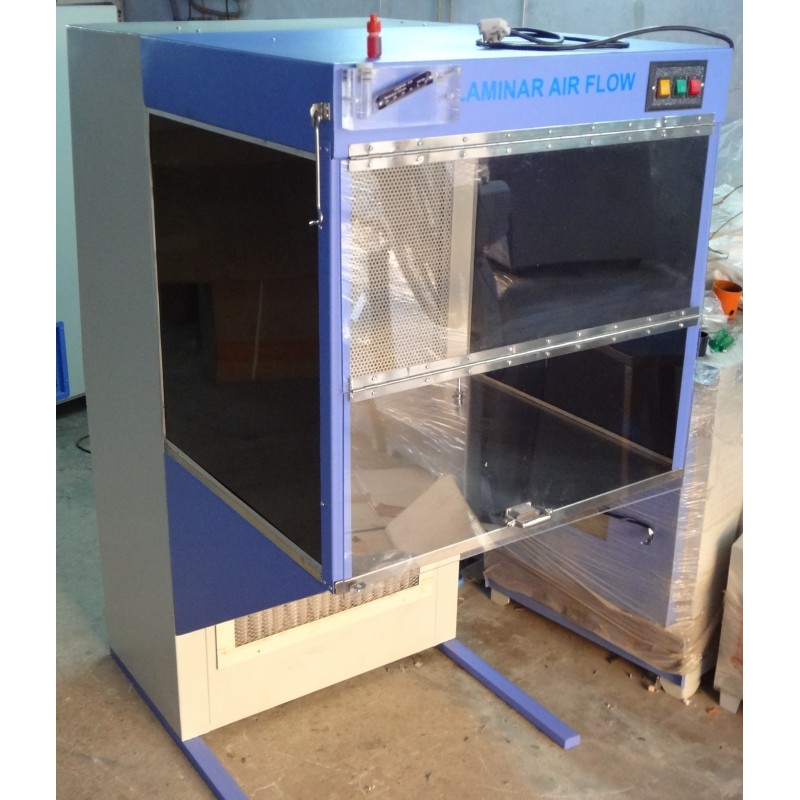

"PSI” Laminar Air Flow Benches Horizontal are designed so as to meet the requirement of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions mainly used for various works that require maintenance of the cleanness and purity.
It is Ideal for Culture analysis, Bacteriological & Biological applications in Hospitals, Plant Tissue Culture, Labs, Food, Beverage and Electronic industries.
It provides an economical work environment- suitable for hospitals, drugstore, pharmaceuticals factories, sanitation and anti-epidemic stations.
SALIENT FEATURES & CONSTRUCTION :
- Low Cost, Low Noise.
- User Friendly Ergonomic Design.
- Controlled Environment Particulate Free Product Protection.
- Basic material is thick board wood front back top and exterior surfaces are covered with
- Stainless Steel (SS-304).
- Working table is made of Stainless Steel Sheet (SS-304 grade).
- All interior surfaces are epoxy painted filter seat is carefully formed, installed and checked for leakage.
- Side panels & front doors are made of 6 mm thick acrylic transparent plexi glass.
- The highly efficient HEPA filter maintains the optimum cleanliness and purity.
- The pre-filter fitted extends the life of HEPA filter drastically. Air drawn through pre-filter is made to pass through highly effective
- HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
- Working area is illuminated by fluorescent lighting fitted to the unit.
- The blower and motor assembly is statically and dynamically balanced of 1/5 H.P. capacity operates with minimum noise level.
- Height of the working table provides comfortable "SIT DOWN" working position for the operator.
- Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer. Built in U.V. Germicidal Light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
- Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.
Working Size |
2ft x 2ft x 2ft |
3ft x 2ft x 2ft |
4ft x 2ft x 2ft |
