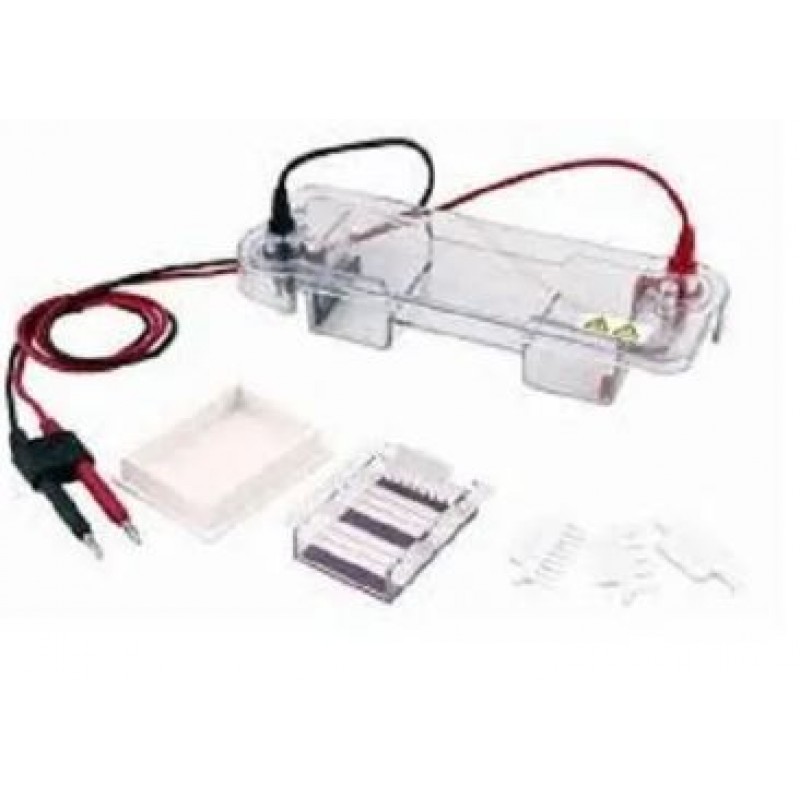

Horizontal Electrophoresis Tank
Product Details:
Model Name/Number | ET-H2 |
Gel Trays(W*L) | 60*60mm; 120*60mm; 60*120mm 120*120mm |
Comb Thickness | 1&1.5mm |
NO. of Samples | 1~100 |
Buffer Volume | 550ml |
External Size(L*W*H) | 300*160*75mm |
Gross Weight | 2kg |
Comb Throughput | 1,2,3, 6, 8, 11, 13, 18 ,25 samples |
Standard Accessories | Body tank with electrode*1, Gel tray 120*120mm*1, Gel tray 120*60mm*1, Gel tray 60x120mm*1, Gel tra |
Model | ET-H1 |
Gel Trays(W*L) | 48*75mm |
Buffer Volume | 150ml |
Comb Thickness | 1&1.5mm |
Comb Throughput | 3,5,9 samples |
NO. Of Samples | 3~18 |
Standard Accessories | Body tank with electrode*1, Gel tray 48*75mm*1, Gel box*1,
1.0mm thickness 3 wells comb*2, 1.5mm thickness 3 wells comb*2,
1.0mm thickness 5 wells comb*2, 1.5mm thickness 5 wells comb*2,
1.0mm thickness 9 wells comb*2, 1.5mm thickness 9 wells comb*2 |
External Size(L*W*H) | 250*95*50mm |
Package Size(L*W*H) | 320*160*160mm |
Gross Weight | 1 kg |
Horizontal Electrophoresis Tank
