High Temperature Vacuum Gas Flow

Product Details :

Temperature range	Ambient to +600 Degree C (under the vacuum bottom)
Stage size	Diameter 100mm / 16mm thickness (not include a connector plug and a tang)
Transmission effective diameter	Diameter 4mm
Window size for chamber	20mm(dia) x 2mm(thick)
Window size for sample port	13mm(dia) x 1mm(thick)
Gas connection	1/8 "Swagelock x 2:
Cell body	Aluminum/Nickel coated
Rated heater	40V-80W MAX
Control method	PID control
Weight of temperature controller	1kg
Voltage	100 V
Current	5 A
Power Source	AC

Other Details :

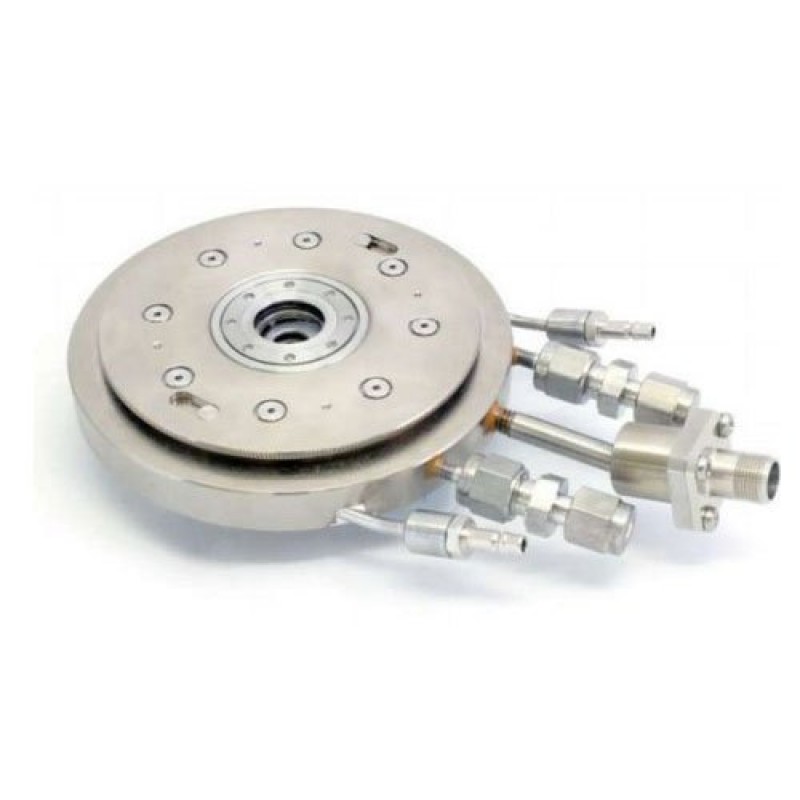

Compact Heat Stage S-100R-The S-100R microscope heat stage is designed for spectroscopic analysis which is small and light-weight. Compact design fits most stages of FTIR and Raman Spectroscopy.

Features:
·         Precise temperature control up to 600 degree C.
·         Easy sample loading, assembly and disassembly.
·         Direct transmission measurements in sample compartments of FTIR spectrometers which includes variety of windows such as Kbr, BaF2, CaF2, Quartz and ZnSe.
·         S100R also provided with three sample holders.

Vacuum:
·         The sample compartment of Model S100R is sealed structure by O-ring and making the measurement condition under the vacuum.

Gas Flow:
·         S100 has two gas ports of 1/8 inch Swagelok.

Pressure:
·         Stage can use under 0.5MPa pressure with pressure resistance windows such as BaF2, CaF2, ZnSe etc.

Option:
·         An optional interface plate for motorized stage of FTIR and Raman microscope is available. Also, the S100R may be used inside the FT-IR sample compartment as a               heated transmission cell.

Changing the sample:
·         Sample can be changed very easily. The upper window plate uses a twist-on design; no tools are required. (But screws need for under pressure).

Transmission measurement:
·         The sample may be placed on a 13mm diameter window or on the provided 13mm alignment mirror. A variety of windows are available including KBr, BaF2, CaF2,                 Quartz, and ZnSe. S100R also provide the three sample holders. Each holders has hole of 1, 2 and 3mm. It is very useful for Transmission measurement.

Cell body:
·         S100R is made of Aluminum and very thin profile (16mm). It can use for short working distance objective of microscope.

Safety:
·         For minimize the transfer of external heat, S100R has water-cooling circuit in main body.
