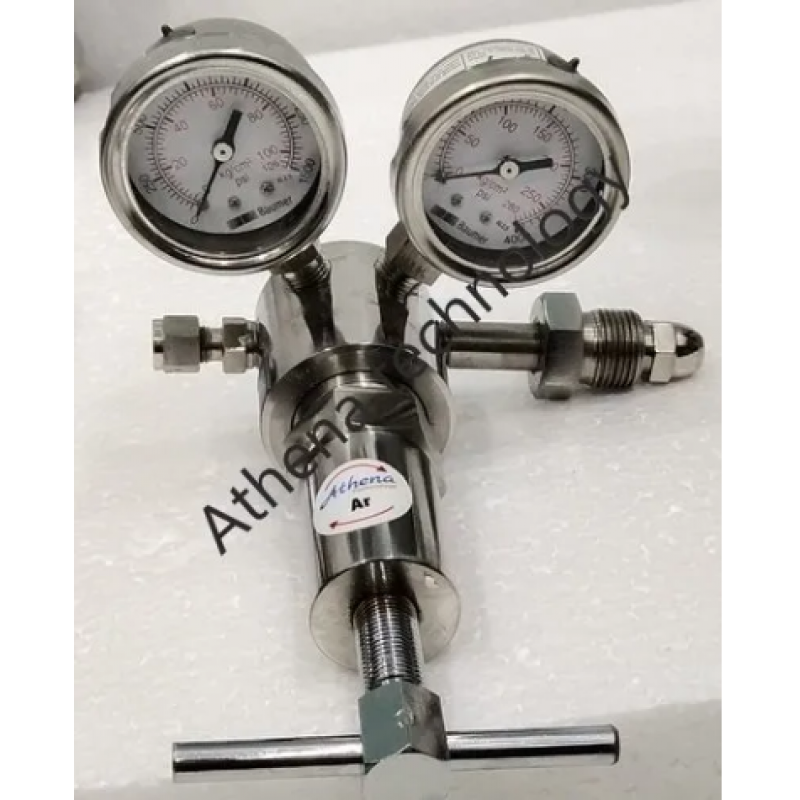

High Pressure Piston Regulator

High pressure piston type cylinder regulator. High pressure piston type cylinder regulator brass chromplated body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement) & High pressure piston type cylinder regulator SS body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement) Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.

Other Details:

• Inlet pressure range: 0 - 240 kg/cm²
• Outlet pressure range: 0 - 14 kg/cm² in diaphragm type
• Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
• Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature
