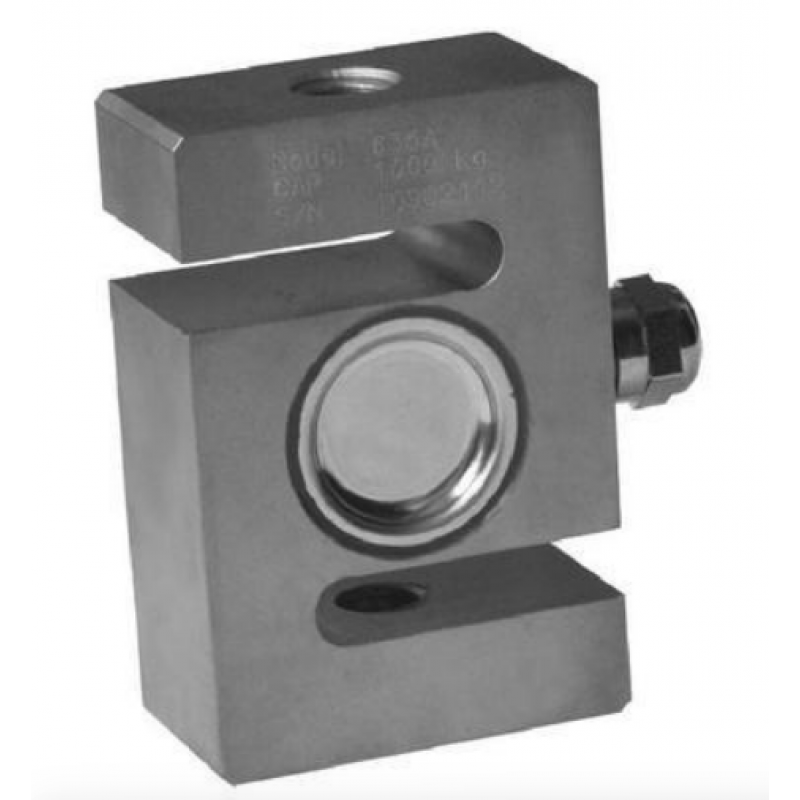

High Precision Load Cells

Product Details:

Excitation Voltage	10 vdc - max.15 vdc
Output Resistance	350 +/- 5 ohms
Ultimate overload of rated capacity	200.00%
Standard capacities	1, 3, 5, 10, 15, 20, 30, 40-kg
Safe overload of related capacity	150.00%
Cable length (4 core screened)	45cm
Normal output	2.0 mv/v

We are a noteworthy manufacturer, exporter and supplier of a comprehensive range of High Precision Load Cells. Our offered load cells are designed by our skilled engineers using quality approved raw material and upgraded load cells in compliance with the international quality standards. In addition to this, our provided cells undergo various tests under the supervision of our quality controllers to ensure its flawlessness. Clients can avail these cells from us in customized options and at market leading rates.

Features:

• Sturdiness
• Long operational life
• Excellent performance

Other Details :

Excitation voltage	10vdc-max. 15vdc
Normal output	2.0 mv/v
Non - linearity	< ± 0.025% fso
Hysteresis	< ± 0.02% fso
Non - repeatability	< ± 0.01% fso
Creep (30 minutes)	< ± 0.03% fso
Zero balance	± 1.0% fso
Input resistance	400 ± 15 ohms
Output resistance	350 ± 5 ohms
Insulation resistance (50vdc)	> 1000 mega ohms
Temp compensated range	0-60ºc
Temperature effect on output	< 0.0015% fso/ºc
Temperature effect on zero	< 0.0020% fso/ºc
Platter size	300mm x 300mm
