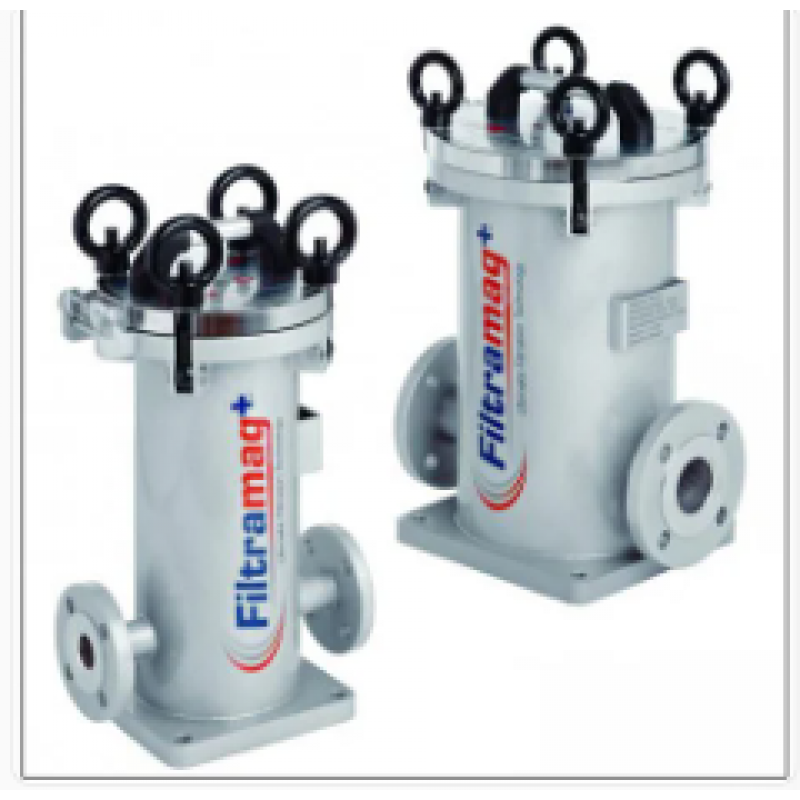

High Intensity Magnet Filter

Brand	Kleenoil India
Dimension	395 x 180 x 255 mm
Model Number	FM1.5+
Max Flow Rate	250 L/min
Contamination Capacity	3 Kg
Max Operating Pressure	20 Bar
Connection	1 1/2" PN16 Flange

With a unique “Dual Flow Technology TM” design Filtramag+ is the most efficient filter of its type available. The dual flow design ensures that fluid is exposed to the high intensity magnets for the maximum time, thus ensuring almost 100% of ferrous contamination is removed on the first pass.

How Filtramag+ works

Fluid enters through the inlet and flows up through the primary filtration chamber, it then flows down through the secondary filtration chamber, Fluid then passes through an optional mesh screen which removes non-magnetic debris. The patented magnetic circuit design ensures that the filter can never block even in high contamination applications. The magnetic cores can be removed easily by hand and cleaned with the tool supplied. As an option a spare magnetic cartridge can be supplied to ensure production continuity.

High performance magnetic filter for higher flow, higher Contamination applications.

• Patented design

• Easy installation

• Unique Dual Flow TechnologyTM - maximises collection capability

• High flow capability

• Operates at up to 20 bar

• Removes both magnetic and non-magnetic contamination - optional mesh strainer

• Non block design

• Minimal pressure drop

• In-line connections

• Ideal for use in harsh chemical environments

• Full stainless steel construction
