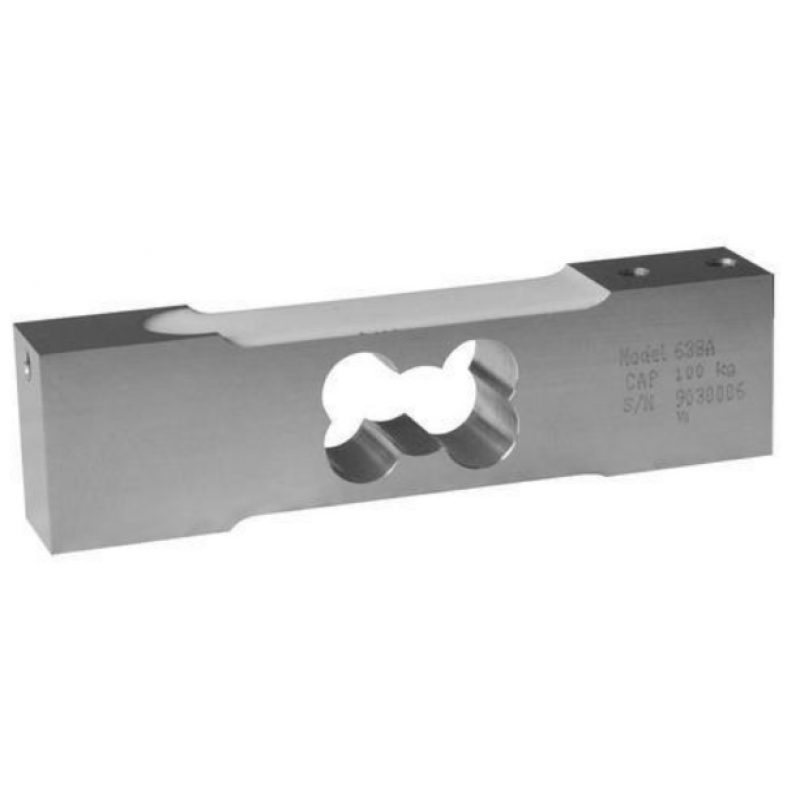

High Capacity Load Cells

Product Details:

Brand	Goldtech
Excitation Voltage	10 vdc- max. 15vdc
Output Resistance	350 +/- 3 ohms
Platter size	750 mm x 750 mm
Cable length (4 core screened)	250 cm
Ultimate overload of rated capacity	250.00%
Safe overload of related capacity	150.00%
Normal Output	2.0 mv/v

From our wide range of products, we offer optimum quality High Capacity Load Cells. The offered load cells are manufactured using optimum quality raw material and high-end technology. We offer these load cells in different sizes, designs and other related specifications, in order to meet needs of our prestigious clients. Apart from this, our offered load cells are rigorously tested by our experts on well-defined parameters to deliver a flawlessness range at our client's end.

Features:

• Corrosion-resistance
• High operational fluency
• Easy to install

Other Details:

Standard capacities	100. 150. 200. 300. 500. 750. 1000. 1500. -kgf
Excitation voltage	10vdc-max. 15vdc
Normal output	2.0 mv/v
Non - linearity	< ± 0.025% fso
Hysteresis	< ± 0.02% fso
Non - repeatability	< ± 0.01% fso
Creep (30 minutes)	< ± 0.03% fso
Zero balance	± 1.0% fso
Input resistance	390 ± 15 ohms
Output resistance	350 ± 3 ohms
Insulation resistance (50vdc)	> 1000 mega ohms
Temp compensated range	0-60ºc
Temperature effect on output	< 0.0015% fso/ºc
Temperature effect on zero	< 0.0020% fso/ºc
