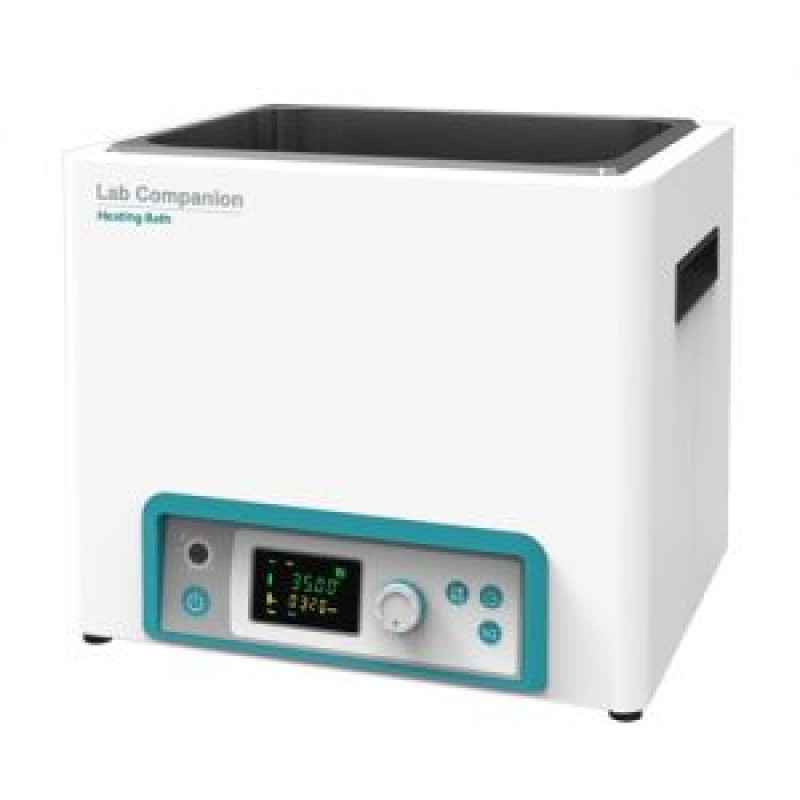

Heating Baths (General)
Product Features:
Outstanding temperature control water baths for diverse applications
Performance
- Temperature range from ambient +7℃ to 100℃
- Microprocessor PID control
- Temperature calibration / Automatic tuning / Automatic run
Convenience
- User friendly control panel
- Bright VFD with membrane touch switch and control knob
- Side handles for easy transportation
- Dual wait on/off timer modes (1 min. to 99 hr. 59 min.)
- Convenient memory function of up to three frequently set temperature
- Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids
- Easy access drain valve for convenient handling
- Low-profile design with sloped control panel for easier access and better safety
Safety
- Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact
- Complete safety protection system with warning alarms
- Low fluid level and dry-running, over-temperature, over-current
- Control lock function prevents accidental changes during operation
- Splash-proof keypad
Product Description :
| Model | BW3-05G | BW3-10G | BW3-20G | |
| Bath volume(L / cu ft) | 3.5 / 0.1 | 11.5 / 0.4 | 20 / 0.7 | |
| Working temperature range (℃ / ℉) | Amb. +7 to 100 / Amb. +12.6 to 212 | |||
| Temperature stability 1) (±℃ / ℉) | 0.4 / 0.72 | 0.3 / 0.54 | 0.3 / 0.54 | |
| Dimension (W×D×H) | Bath opening / depth (W×L,D) (mm / inch) | 240×136,150/9.4×5.4,5.9 | 300×240,200/11.8×9.5,7.9 | 498×300,200/19.6×11.8,7.9 |
| Exterior (W×L×H) (mm / inch) | 307×200×264/12.1×7.9×10.4 | 360×300×294/14.2×11.8×11.6 | 564×356×294/22.2×14×11.6 | |
| Net weight (Kg / lbs) | 6.5 / 14.3 | 10 / 22 | 18.5 / 40.8 | |
| Electrical requirements (230V, 50 / 60Hz) | 3A | 4.3A | 8.7A | |
| Cat. No. | AAH41305K | AAH41315K | AAH41325K | |
