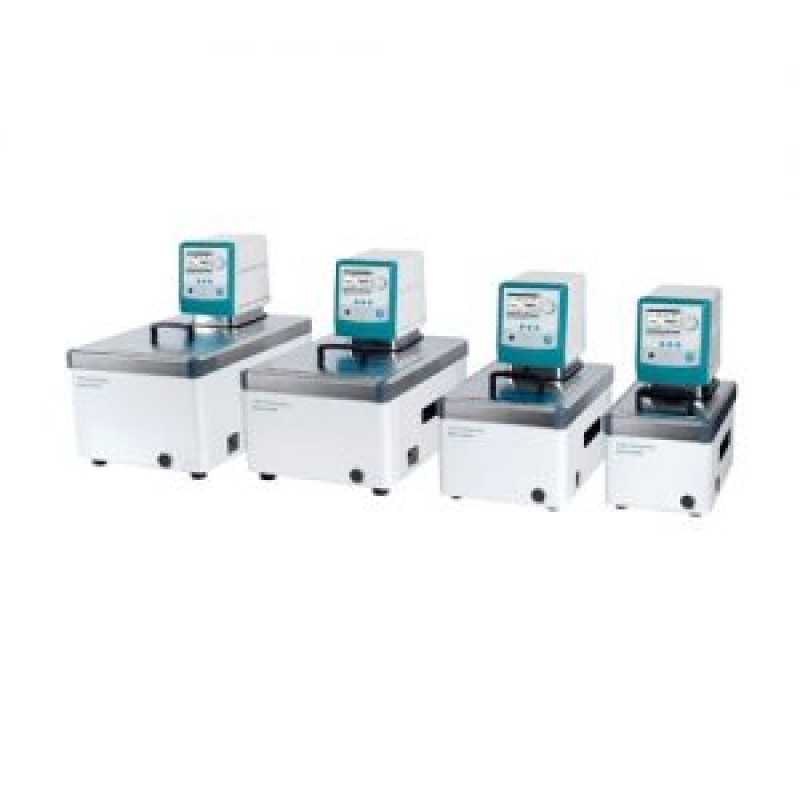

Heating Bath Circulators (Programmable)

Product Features :

Highly intuitive user interface is insured by equipping the new smart programmable controller

Intelligent program control

• 10 programs available for temperature ramp up and dwell control
• 10 steps per a program and 99 hours 59 minutes per a step
• Stored programs are easily linkable
• Programs can be repeated up to 99 cycles
• Pre-heating and heating time are settable before program starts

Performance

• Temperature range from ambient +5℃to 150℃
• Microprocessor PID control
• Three point temperature calibration / Automatic tuning / Automatic run
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range

Convenience

• Intuitive touch screen LCD controller with easy icons and logical menus
• Dual wait on/off timer modes (1 min. to 99 hr. 59 min.)
• Digital input and output control function for interlocking external devices
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve
• Built-in RS-232 port and USB port for external control and data collection
• Built-in casters and side handles for easy transport and installation

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety protection system with warning alarms

                – Low fluid level and dry-running, over-temperature, over-current

• Keypad lock function prevents accidental changes during operation
• Splash-proof keypad
