Single Cylinder Four Stroke Petrol Engine Test Rig

Product Details:

Brand

saini

Description IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.
• Experimentation/Learning Objectives
• To determine specific fuel consumption
• To determine Brake Horse Power
• To determine Brake Thermal Efficiency
Utilities Required
• Petrol : 5 liters
• Water Supply: Continuous water flow of 10LPM at ½ kg/cm2 pressure if Calorimeter is ordered.
• Power Supply : 230V AC, 5 Amp socket with earth
• Floor Space : 2m x 1 m
Technical Details

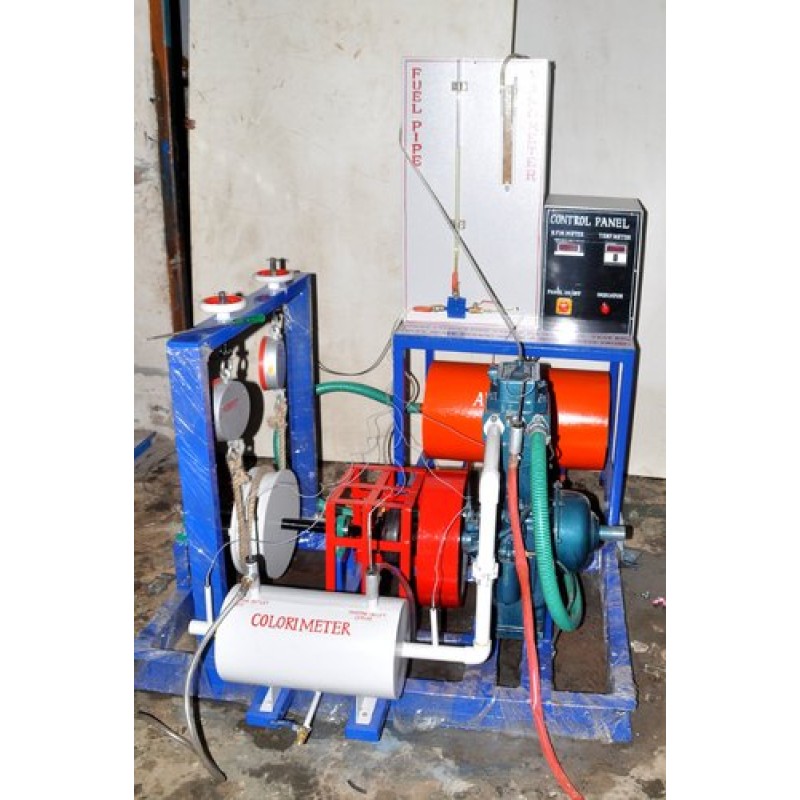

• Type of Engine : Single cylinder, four stroke, air cooled, Hand start, self lubricating, petrol engine, Honda make (Model:GX-200)
• Type of Loading : Rope Brake Dynamometer , electrical brake dynamometer, hydraulic brake dynamometer, eddy brake current dynamometer
• RPM measurement : RPM Indicator with Proximity sensor.
• Fuel measuring system : Fuel measuring system consists of a fuel tank, a burette and a three way cock
• Air Intake Measuring : Air tank fitted with orifice and water System manometer.
• Exhaust Gas Calorimeter : An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases. The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil. Digital Temperature indicator with Temperature sensors at appropriate position will be provided.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
