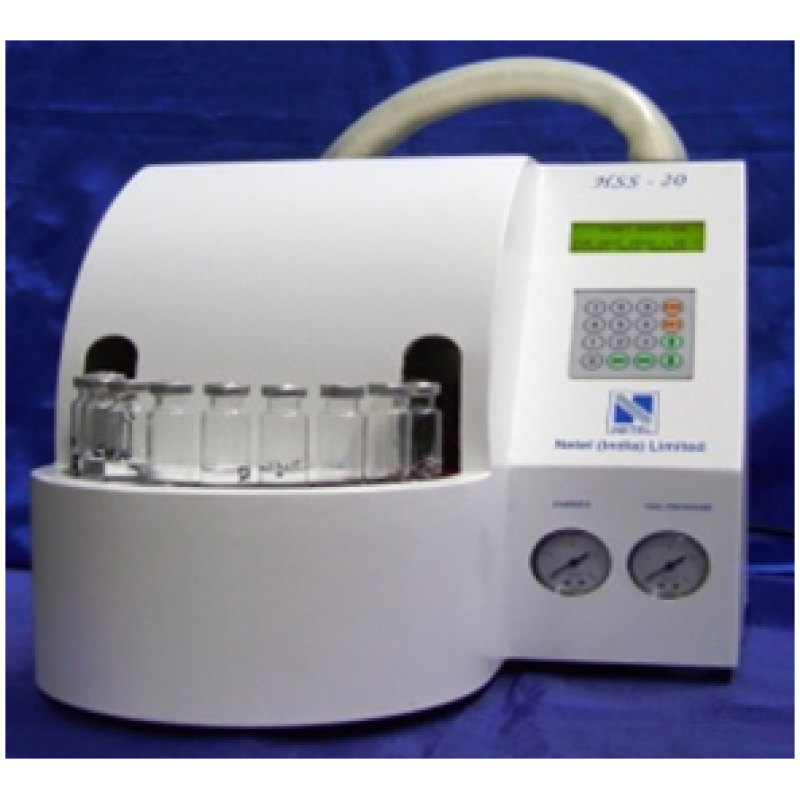

Head Space Sampler

HSS-20

Product Details :

• Industries Covered - API &Pharma Industry, Edible oil Industry, Packaging, Speciality Chemicals

Product Features

• Operates upto twenty samples continuously
• Indication on display for live operation mode
• Separate keyboard & display for head space activity

Technical Specifications

• Model Name    : Head Space Sampler HSS-20
• Type    : Static
• Vial Size    : 20 ml
• No. of vials    : 20
• Sample Loop    : 1 ml
• Vial temperature range    : Ambient to 250oC, settable
• Programme    : 1 to 20 vials, or settable
• Valving    : Motorized 6 port valve
• Valve /Loop temperature    : Automatically gets adjusted with Vial Temperature
• Sample path    : 1/16” silynated s.s
• Transfer Line Temperature    : Ambient to 250oC, Settable
• Electronic control    : Parameters entry via GC front Panel
• Physical dimensions    : 35.0 cm W x 31.0 cm L x 32 cm H
• Display    : LCD with backlit, 4 Lines x 20 Characters
• Key Board    : Membrane
• Weight    : 10 Kg Approx.
• Power requirements    : 230 V AC, 50 Hz supply.

Product Applications

Agrochemicals:

•  Evaluation of technical & formulated material complying BIS & relevant bodies

API/BDI industries :

• Estimation of residual solvents using HSS.
•  Estimation of residual solvents using HSS.
•  Control the quality of solvents/raw materials/reagents.
•  To monitor the course of the reaction whenever possible.

Environmental:

•  Monitoring the Bap content with other PAHs.
•  Residual pesticides from drinking water.
•  Monitor the Trihalomethane content of the ambient air.
•  PCB content of the oil and water.
•  Gaseous analysis of Hydrocarbon and permanent gases in ambient air

Petroleum & Refinery:

•  Evaluation of quality of Petroleum based products

Perfume Industry:

•  Fragrance composition

Food Industry:

•  Composition of edible oils with respect to their MUFA,PUFA & SFA evaluation with focus on trans content

Petrochemicals:

•  Evaluation of hydrocarbon blending in wax and other blends

Speciality Chemical Industry:

Research:

•  Accomplish the special projects that are applicable.

Polymer:

•  Evaluation of quality of raw materials in the form of monomers & detection of these monomers at trace levels in polymers

Packaging:

•  Estimation of residual solvents from the packaging materials.

Solvent Industry:

•  Evaluation of the quality of recoverd/distilled solvents

Beverages:

•  Impurity profiling of alcohol produced
