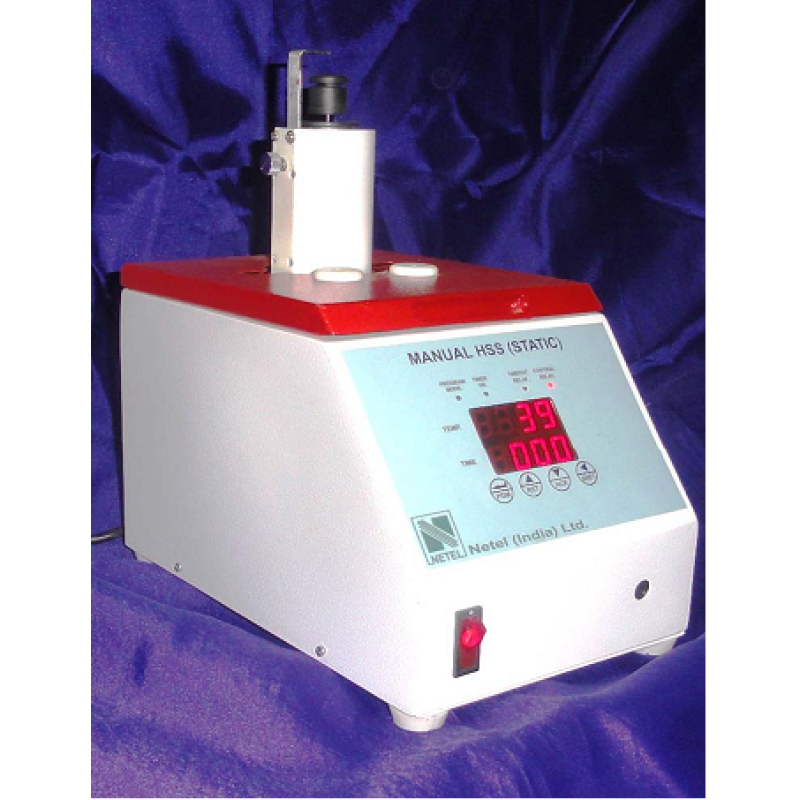

Head Space Manual Static

Head Space Sampler

Head Space Manual Static

Industries Covered - API &Pharma Industry, Edible oil Industry, Packaging, Speciality Chemicals

Technical Specifications

Operating ambient conditions:

•     Temperature: 10-40ºC
•     Relative humidity: 20-80% RH
•     Power Heating temperatures Range:    230 AC ±10% Room temp.
•     +10ºC until 140ºC
•     (*)(*)
•     If a Gas tight Syringe designed for Head Space technique with 130ºC is used to work with the instrument, then the instrument can operate up to 140ºC.
•     Room temp. +10ºC until T syringe max
•     (**)(**)
•     The maximum operating temperature of the instrument shall correspond to the maximum temperature can be held by the syringe.
•     Temperature accuracy: ± 1ºC
•     Syringes, volumes admitted: 5.0 ml and 2.5 ml with same

physical Dimensions

•     Vials volumes admitted: 2 ml, 3 ml, 10 ml, 20 ml,
•     Sampling time control with acoustic alarm: 1 to 99 seconds
•     Equilibrium time control with acoustic alarm: 1 to 99 minutes
•     Incorporates thermal protection with heating disconnection: Safety temperature is 150ºC
•     Stabilization time from 25ºC to 70ºC with a syringe of 5 ml and 2 empty vials of 20 ml: 20 Minutes"

Product Applications

Agrochemicals:

•  Evaluation of technical & formulated material complying BIS & relevant bodies
• API/BDI industries :
• Estimation of residual solvents using HSS.
•  Estimation of residual solvents using HSS.
•  Control the quality of solvents/raw materials/reagents.
•  To monitor the course of the reaction whenever possible.

Environmental:

•  Monitoring the Bap content with other PAHs.
•  Residual pesticides from drinking water.
•  Monitor the Trihalomethane content of the ambient air.
•  PCB content of the oil and water.
•  Gaseous analysis of Hydrocarbon and permanent gases in ambient air
• Petroleum & Refinery:
•  Evaluation of quality of Petroleum based products

Perfume Industry:

 Fragrance composition

Food Industry:

•  Composition of edible oils with respect to their MUFA,PUFA & SFA evaluation with focus on trans content

Petrochemicals:

•  Evaluation of hydrocarbon blending in wax and other blends

Speciality Chemical Industry:

Research:

•  Accomplish the special projects that are applicable.

Polymer:

 Evaluation of quality of raw materials in the form of monomers & detection of these monomers at trace levels in polymers

Packaging:

 Estimation of residual solvents from the packaging materials.

Solvent Industry:

 Evaluation of the quality of recoverd/distilled solvents

Beverages:

 Impurity profiling of alcohol produced
