Glass Distillation Unit

Product Details:

Glass Distillation unit is used for process of separating the component substances from a liquid mixture by selective vaporization and condensation. Municipal or well water is manually or automatically fed into the distiller unit’s boiling chamber. A heating element in the boiling chamber heats the water until it boils. The steam rises from the boiling chamber. Volatile contaminants (gases) are discharged through a built-in vent. Minerals and salts are retained in the boiling chamber as hard deposits or scale. The steam enters a coiled tube (condenser), which is cooled by cool water. Water droplets form as condensation occurs and is stored in a jar or container

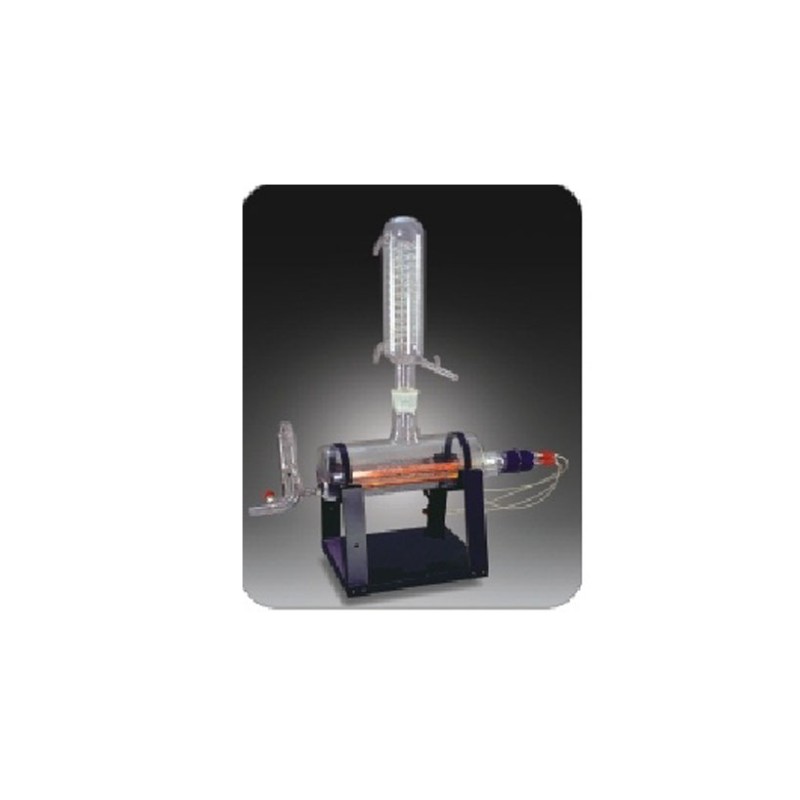

Glass Single Distillation Unit

Technical Features

• Replaceable Quartz Heater & with Built-in Safety Control
• Water level sensor to cut off heater when water is low

• Boiler is provided with Teflon Screw Cock for easy draining of water in the boiler.
• Heater is fitted with a Thermostat which shuts off  power automatically in case of water supply failure

• Electrical requirement: 230V AC, single phase, 50Hz


  Model		SAII-GDDU-1	SAII-GDDU-2	SAII-GDDU-3	SAII-GDDU-5	SAII-GDDU-8
  Dist. Water Output Cap.(Approx)	1 L/hr		2 L/hr	3 L/hr	5 L/hr	8 L/hr
  Quartz Heater rating	1 x 2 kW		1.5 x 2 kW	2 x 2kW	3 x 2 kW	5 x 2 kW
  Cooling Water consumption	100 L/hr		120 L/hr	140 L/hr	180 L/hr	250 L/hr
  Each Boiling chamber volume	3 L		6 L	8 L	16 L	25 L
  Biological Activity	Pyrogen Free
  pH	6.9-7
  Conductivity µS/cm	1.0 to 2.0 µS/cm
  Distillate Temp	65-750C

  Glass Double Distillation Unit

Technical Features & Specifications

• Replaceable Quartz Heater & with Built-in Safety Control
• Water level sensor to cut off heater when water is low
• Boiler is provided with Teflon Screw Cock for easy draining of water in the boiler.
• Heater is fitted with a Thermostat which shuts off  power automatically in case of water supply failure
• Electrical requirement: 230V AC, single phase, 50Hz


Optional Items

• Gate Valve (Solenoid Valve): to conserve cooling water in case of power failure.
• Flow Switch: Safety for the equipment. Unit shuts off when cooling water to condenser stops.

• PID temperature indicator cum controller (in place of thermostat)
• Condenser and boiler chamber made of Quartz material (in place of borosilicate)
