Glass Compass
Product Details:

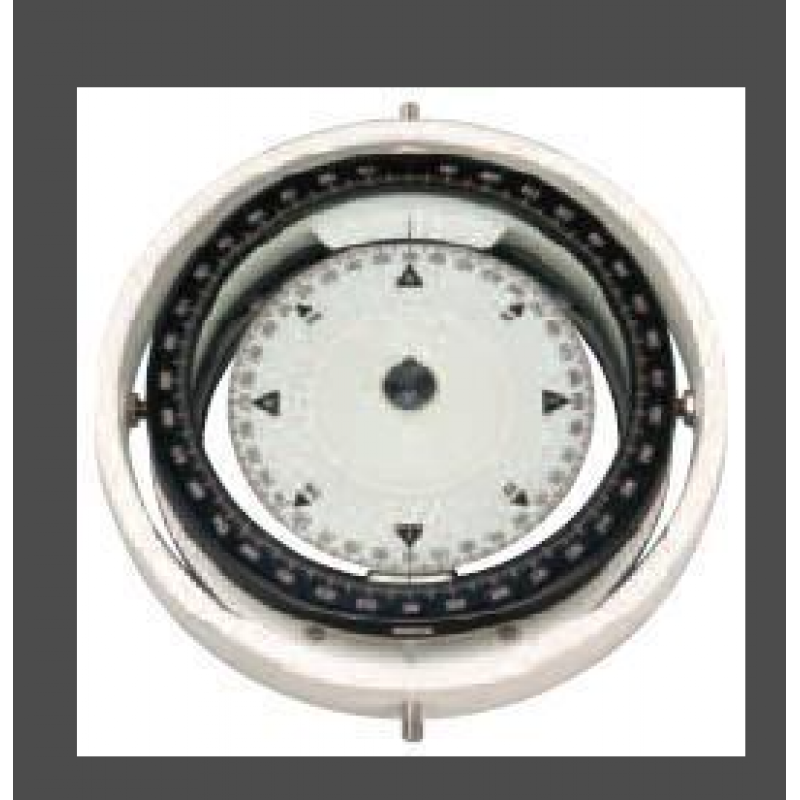

Jupiter magnetic flat glass compass, a flux-gate pick-off with an integrated sine/cosine interface, by-pass arrangements, azimuth devices, electronic compasses and magnetic compass autopilots (TMC). All of these products are manufactured to Sperry Marine's well known high standards.

Bearing compass, steering compass, reflector compass and overhead compass for large vessels. A "class A" compass with a card diameter of 180 mm. It meets ISO 449 standards and is type approved in accordance with the EC Council Directive 96/98/EC. Further type approvals for many other countries are available on request. The Jupiter compass may be installed in all NAVIPOL binnacles and its accuracy is better than 0.5°. Weight: 8.7 kg.

Options include:

•  flux-gate pick-off
• shadow pin
• wooden transport box

• replacement parts kit
• azimuth device
