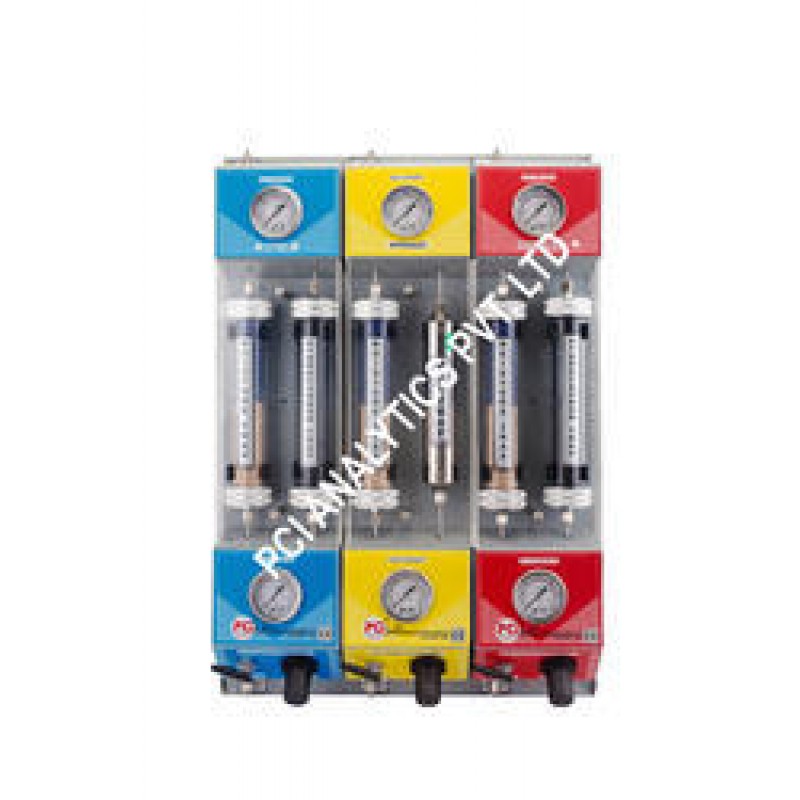

Gas Purification System
Product Details :
| Minimum Order Quantity | 1 Piece |
| Body Material | Stainless Steel |
| Brand | PCI Analytics |
| Gas Requirements | N2 ,H2 , Zero Air ,Acetylene , He ,Hydrogen etc |
| Finishing | Powder Coated |
| Pannel Dimension | 420x600x87 mm |
| Net Weight | 14 kg |
| Pressure Guage | 0 - 10 kg/ cm2 |
Salient Features Benefits:
- Deliver Ultra High Pure (UHP) Grade Gases
- Compact Design, Wall Mounted, Powder Coated
- Filters are easily detachable
- Suitable for 10kg/cm² inlet pressure 7 kg/cm² outlet pressure
- Panel for LC-MS-MS other applications is also available
- Reduce baseline noise, drift problems, etc.
- Increase column life, GC detectors reduces flame problems
- Improve reproducibility
- Save costly gases through toggle valves gas distribution panel.
- Pressure Regulators : Maximum inlet pressure 10 kg / cm²
- Optional pressure range 0-7 kg / cm² with Neopren Rubber Diaphragm / SS Diaphragm
Specification:
| APPLICATION | FILTER TYPE | MAX. INLET IMPURITY LEVEL | MAX. OUTLET IMPURITY LEVEL | LENGTH End to End | CAPACITY |
|---|---|---|---|---|---|
| Moisture Removal | Silicagel / Molecular Sieve | 20 ppm | < 3 ppm | 10" | 210 CC |
| Hydro Carbon Removal | Activated Charcoal / Carbon | 10 ppm | < 2 ppm | 10" | 210 CC |
| Oxygen Removal | De-Oxo Chemical catalyst | 10 ppm | < 2 ppm | 8" | 125 CC |
| Particle Removal | Micron Filter | 25 μ | < 0.5 μ | 2" | — |
