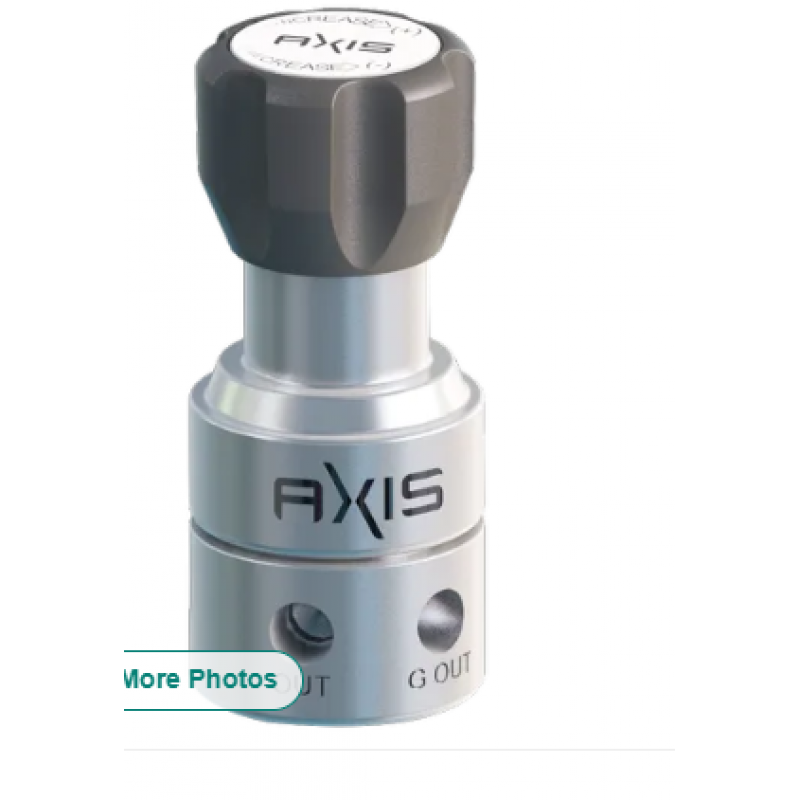

Gas Cylinder Pressure Regulator
Product Details:

Gas	Industrial Gas Cylinders
Brand	Axis
Pressure	Inlet: Max 6000psig, Outlet: Max 500psig
Regulator Type	High Pressure Regulator
Material	Stainless Steel
Color	Silvery White
Stage Type	Single Stage
Seat Material	PTFE / PEEK
Body Material	SS 316 / Brass
Mounting	Wall / Line
Diaphragm	Nitrile / Viton / Metallic
Country of Origin	Made in India

Axis Pressure regulator is designed to deliver continuous & precise control to the further system. It is a single-stage pressure control regulator. It is mainly used in the instrumentation sample handling system for all types of Gas media applications.

Used in Oil and refinery, power, chemical, and any type of process industries.

Many features of the PRg1 / PRg3 make it ideal for a wide range of applications controlling pressures at low to adequate flows in gas media. It has a wide operating range up to 413.6 bar and up to 170°C media temperature can be sustained. PRg3 can also be used for water applications.

Features:
Economical
Wall / Line Mount
Less maintenance
Easy to install

Advantages:
Less space occupied due to horizontal installation
Used up to 413.6 bar and 260°C media temperature
Highly reliable for continuous operation
Designed for precised Control
